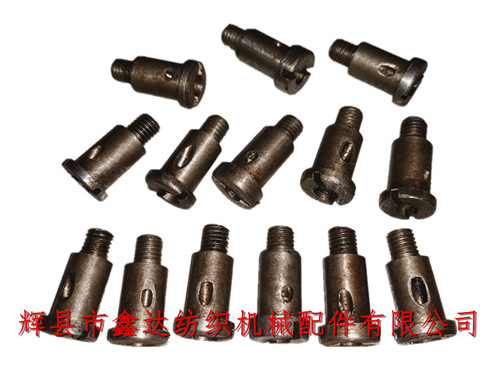

Huixian Xinda Textile Machinery Accessories Co., Ltd. provides Modern Power Loom Parts J20 Limiting Stud, J20 Royal rod screw core(Limiting Lever Stud) for modern loom accessories,shuttle loom parts,Loom Part, Shuttle Loom Accessories, Control Rod, which is made of A3 cold drawn material. The total length of J20 mandrel is 31mm. There is a refueling hole in the middle of the slotted groove on the back of the round table. The diameter of the round table is 15.3mm, the thickness is 5mm, and the length of the screw is 7.5mm. J20 loom accessories (Royal rod screw core) are connected with J11 Royal rod, One per modern loom.
The width of the slotted groove on the back is 2.5mm, the diameter of the mandrel intermediate shaft body is 11.5mm, and the shaft head screw is M8. The shuttle bounce of modern loom will relax the weft tension, reduce the force of weft collision with weft fork, and cause insufficient jumping range of weft fork tail hook.
The mandrel used in modern textile machines has different requirements for the tolerance fit of shaft accessories according to the design of the machine. Modern shuttle loom is generally 20 wires. Power Loom Part, Shuttle Loom Parts, Limiting Stud, Modern Power Loom Parts J20 Limiting Stud, The above figure is the side view of J20 control rod screw core, and the oil filling hole is inclined design.
The single weight of modern loom accessories, Xinda loom parts, shuttle loom hardware stub shaft and old loom foot supporting mandrel J20 is about 0.055kg. For details of 1515 loom accessories, 1511 loom accessories, 1515k textile machine accessories and GA615 control rod, please contact Yang Xiansheng of our company for consultation!
