Huixian Xinda Textile Machinery Parts Co., Ltd. provides 380 photoelectric coreless shuttle (composite shuttle with nylon chuck). The 380mm nylon shuttle consists of 2 detachable shuttle tips, 3 ceramic eyes, and 1 SS nylon chuck (with bottom edge). This photoelectric coreless shuttle belongs to a composite shuttle, suitable for use with coreless tubes with a length of 23 centimeters or 25 centimeters. The two sides of the shuttle are coated with composite fabric to enhance its wear resistance. The photoelectric coreless shuttle has the characteristics of convenient replacement of the warp tube and simple structure.

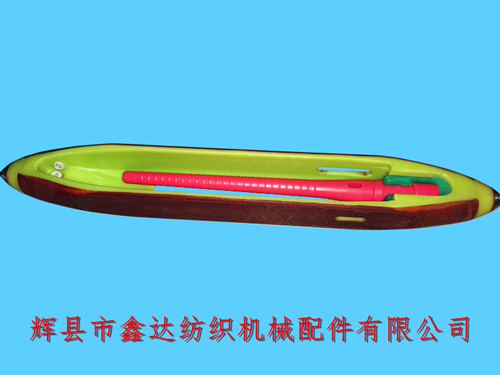

The length of the pink coreless tube in the above picture is 232mm, and the nylon shuttle is used for the left mobile phone. The size parameters of the 380 composite nylon shuttle are: the total length is 380mm, the external width of the shuttle bottom is 45.3mm, the shuttle height at the dark green nylon clamp position is 35.4mm, and the shuttle height at the porcelain eye position is 35.2mm.
The dimensions of the photoelectric weft detection holes on the side of the shuttle are 6mm * 20mm and 8.5mm * 40mm, respectively. The width of the shuttle body cavity is 33mm, and the size of the shuttle bottom groove is 17mm * 164mm. The outer diameter of the porcelain eye is 8mm, and the inner hole diameter is 3.5mm.
The inner width above the green nylon chuck is 18mm. The above picture is a side view of the shuttle's weft insertion and output side. The weight of a single 380 shuttle is approximately 325 grams. The packaging of the 380 photoelectric coreless shuttle (composite shuttle with nylon chuck) is a cardboard box, with 50 pieces per box.
There are various models and specifications of composite shuttles. If you need to purchase coreless photoelectric shuttles, weaving machine composite shuttles, TS coreless shuttles, 380 shuttles and other textile equipment products, please contact Mr. Yang from our company for consultation. We sincerely welcome your visit!
