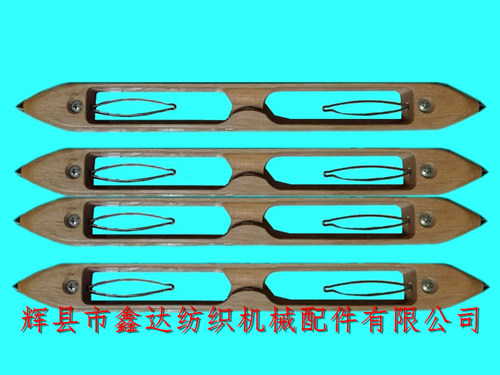

Huixian Xinda Textile machinery accessories all year round to provide a variety of special shuttle textile equipment products customized, foreign hand wooden shuttle dimensions: length 350mm, width 35mm, height 23m, shuttle porcelain eye diameter 7.5mm, height 13.6mm, shuttle core is made of spring steel wire, hand-made wooden shuttle porcelain eye is located in the middle of the side of the shuttle.
Textile equipment (foreign hand-made wooden shuttle) has gone through more than 30 processes. The specifications of the shuttle tip are quite different from those used in China. Double weft tubes are used in the inner cavity at the same time. The shuttle body is smooth and there are no weft slots on both sides of the shuttle.
After the weft is drawn out from the middle position of the shuttle, the shuttle is thrown manually to swing the weft from left to right. The porcelain eye is white fired ceramic, and the surface is coated with porcelain glaze. The back of the wooden shuttle is shown as follows:
The inner cavity size of shuttle is small, and it is suitable for installing the weft tube with a length of about 8 cm. The processing cycle of wooden shuttle, a textile equipment product, is long. Generally, it takes about 40 days. The order quantity of each batch shall not be less than 300 pieces. If it is between 100 pieces and 300 pieces, the price of each piece will be increased by 10 yuan.
The above figure shows the external diameter of the porcelain eye, and the height of the white porcelain eye is 13.6 mm, as follows:
There are many kinds of foreign hand-made wood loom shuttles. When making custom-made wood shuttles, we need to send samples of shuttles and supporting weft tubes to our company, so that we can check whether the finished products are qualified.
Welcome all textile users at home and abroad to our company to purchase wooden shuttles, shuttle accessories, shuttle porcelain eyes, automatic coil changing collet, pulley, Pu collet, glass fiber flexible and other textile accessories. We will serve you wholeheartedly!
