Our company provides accessories for 20 tooth and 23 tooth curved horseshoe shuttles and shuttle seat cap belts. Ribbon Loom Parts Shuttle And Hat Belt Weaving Machine Shuttle Seat, There are significant differences in the number of teeth, curvature, and width of the shuttle seat between the curved horseshoe shuttles. We provide the wood (oak and green oak), shuttle teeth (red steel paper material), and shuttle seat (green oak wood material) for these two types of shuttles, but we do not currently provide the required quantity of hardware components inside the shuttle cavity.

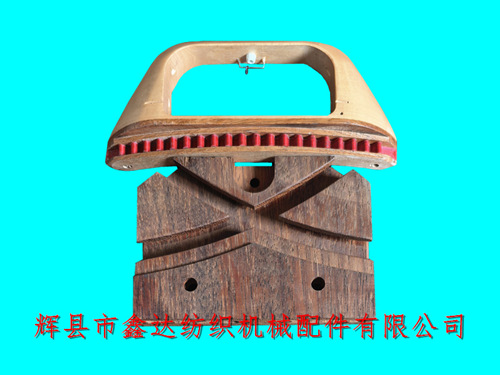

The above picture shows a 20 tooth arc-shaped horseshoe shuttle and its matching double gear shuttle seat. The gears of the shuttle seat are made of red steel paper material (not shown in the above picture). We do not currently provide accessories such as the spindle rod, pressure plate, pressure plate spring, and yarn guide wire inside the shuttle cavity. The porcelain eye, blue glass ring, and the steel wire required for their fixation at the front can be provided (as shown in the above picture).
The above picture shows the shuttle and shuttle seat of a 23 tooth hat belt machine; The side of the shuttle with 20 teeth and 23 teeth is arc-shaped and can swing alternately on adjacent shuttle seats, making it suitable for the modification and upgrade of shuttle looms. The shuttle seat made of Qinggang wood material can meet the hardness and wear resistance requirements of the ribbon shuttle mating parts. The bottom of the shuttle (where the shuttle teeth are fixed) is also made of Qinggang wood material with good hardness. After long-term friction, the movement of the wooden shuttle is smoother.
The bottom of the shuttle each has a circular hole for inserting a glass ring tension spring, which is used to control or balance the tension of the weft yarn after installing the tension spring and glass ring. The minimum order quantity for 20 tooth and 23 tooth curved horseshoe shuttles and shuttle seat hat belt machine accessories is 50 sets; If you need to purchase different specifications of curved shuttles, horseshoe shuttles, weaving machine accessories, shuttle seats, and hat belt machine accessories, you can contact Mr. Yang from our company for consultation.
