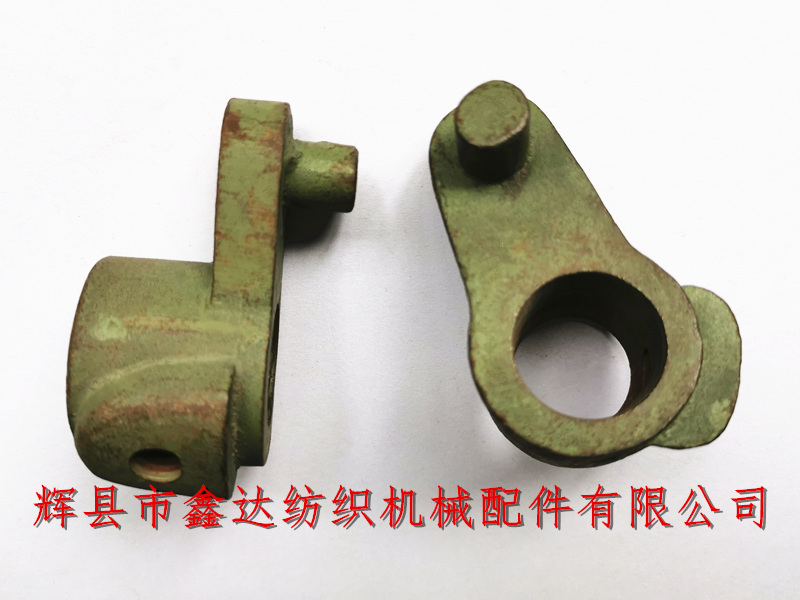

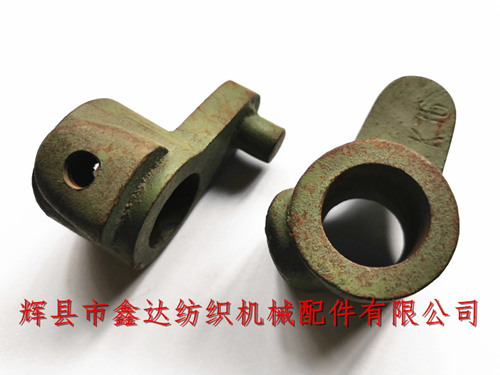

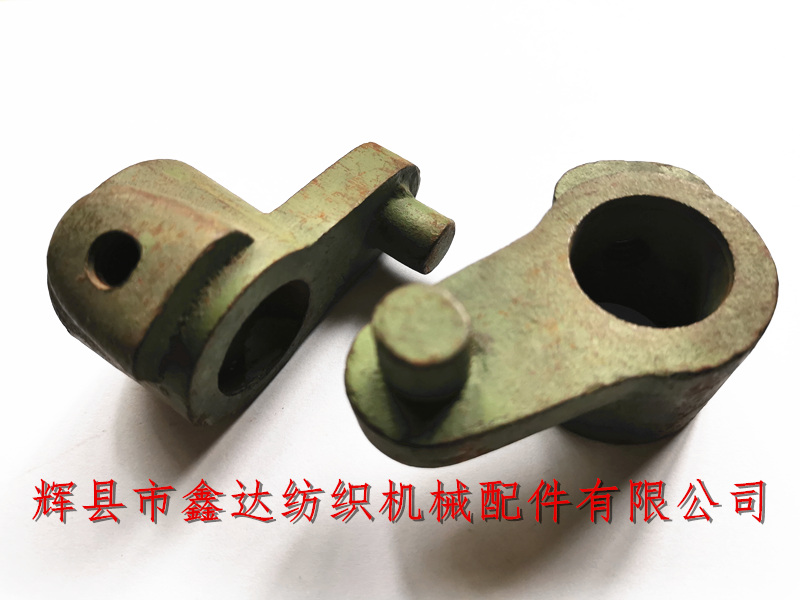

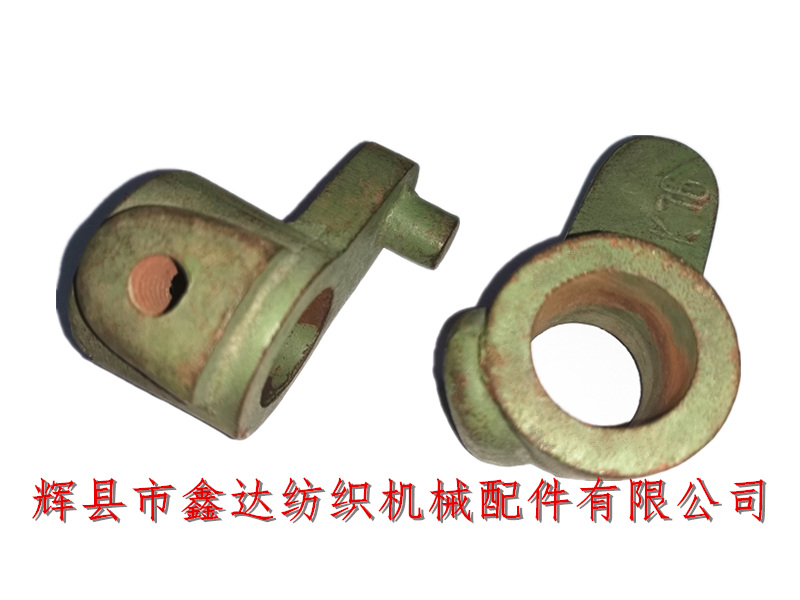

Huixian Xinda Textile machinery accessories long-term supply K76 textile machine accessories reed clip shaft spring hook foot, K76 spring hook foot is divided into left hand and right hand, inner hole diameter is 24mm, material is gray iron HT15-33, screw hole is M8, connected with 3219 or K34 reed clamp shaft, the weight of a single support leg is 0.26kg, textile machine accessories K76 can be used for 1511 and 1515 door width looms.
Install two nuts of connecting bolts between reed Q1 and sley foot, and then install the middle supporting foot k26 of sley and the spring hook supporting foot of k76 reed clamp, tighten its set screw and correct the position of movable hook foot k76.
The rotation of reed clamp shaft is flexible. It mainly requires that the center lines of holes K3 and K4 of its two supporting legs are on the same horizontal line. If the positions of two supporting legs are swung upward and downward, the paper pad is needed to correct the forward and backward deviation by padding paper on the left or right part of the contact surface between the two supporting feet and the reed foot. The screw of sleeve K5 and the nut of two supporting feet are tightened, and the upper and middle support legs k26 are installed, and the cloth roller is laid down.
1515 textile machine accessories - k76 loom reed clip spring hook and k75 reed clip spring hook are used together, each string of 20, packaging: woven bag, if you need to purchase textile machinery, k76, shuttle loom accessories, please contact our company for details!
