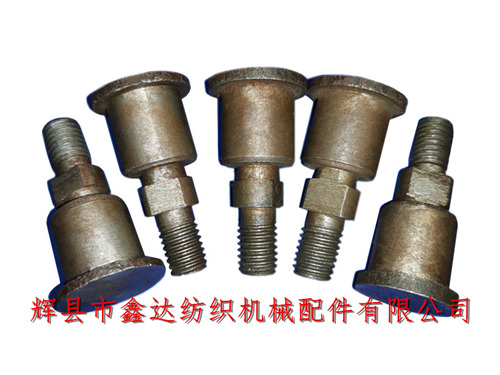

Huixian Xinda Textile Machinery Accessories Co., Ltd. provides the I23 inclined rod screw core of the loom, which is connected with the inclined rod I3 and fixed under the switch handle of the loom. The gap between the two cannot exceed 0.6mm. The total length of the I23 screw core is 45.5mm, the height of the round table is 17.5mm, the diameter is 18mm, the material is A3, and the core head uses M10 hexagon nut.
The I23 tilt rod screw core of the loom belongs to the starting and braking parts of the loom. One is used for each machine. When driving, the top of the I3 tilt rod is horizontal. The thickness of the stop at the tail of the I23 screw core is about 23mm, the single weight is about 0.035kg, and 50 pieces per bag.
I23 inclined rod screw core is applicable to 1511, GA611, GA615, 1515 and other shuttle looms, including 42 inch, 28 inch, 36 inches, 75 inches, 17 inch, 56 inch, 110 inch (K-type) looms. If the hardware mandrel products of textile machinery need frequent inspection and maintenance during the operation of the machine, the abrasion degree shall be replaced according to the instructions.1515 Inclined Rod,1511 Screw Core,I23 Inclined Rod Screw Core of Shuttle Loom,75 inches Shuttle Loom Parts.
The thickness of the flat surface of the I23 inclined rod screw core of the loom is 9.7mm, the diameter is 13mm, the length is 7mm, and the distance from the rear shaft is 3mm. Xinda Textile accessories provides all kinds of shuttle loom parts, hardware pins, small steel parts and other products. Welcome to buy!
