Huixian Xinda Textile Machinery Parts Co., Ltd. provides spinning machine accessories G8# steel wire ring twisting Frame parts. The Ring Traveller is a circular traction component used to install on the spinning machine steel ring (steel collar) for guiding yarn. The outer length of the G8# wire ring is 7mm, the outer width is 5.1mm, and the height when laid flat is 2.4mm; The inner length is 5.5mm, the inner height is 4.4mm, and the inner width at the notch position is 1.7mm. Steel wire ring is a steel ring accessory of spinning machinery, which is a vulnerable part. G8# steel wire ring is generally used on A631 series twisting machines, matched with PG1-5160 steel ring, suitable for cotton weft yarn splicing and twisting.

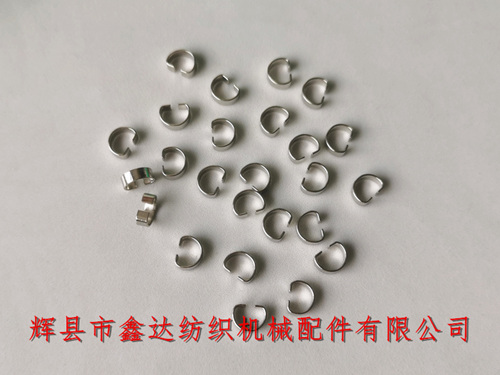

The above picture is a detailed photo of the G8# wire ring. The overall position with a notch is a flat surface, and the upper part is a semi-circular arc-shaped surface. Under normal circumstances, an A631 twisting machine uses the same number of wire rings as the steel rings (PG1-5160 steel rings), which is 380 or 420.
The outer packaging of the wire ring is a green plastic box (as shown in the figure below) or an iron box (earlier), with 3000 pieces per box, a total weight of approximately 444 grams, and a net weight of approximately 388 grams. The external dimensions of the packaging box are: length 107 millimeters, width 81.5 millimeters, and height 56 millimeters.
The English name of the steel wire ring is Ring Traveller. The G-type No.8 steel wire ring is a textile steel wire ring, which belongs to textile equipment products. The G8# steel collar ring accessory has good smoothness and long wear resistance life.
If you need to purchase spinning machine accessories such as G8# steel wire rings, A631 twisting machine (C-type drum type) steel wire rings, and A631E twisting machine (rolling disc type) steel ring accessories, please contact Mr. Yang from our company for consultation. We sincerely welcome everyone's visit.
