Huixian Xinda Textile Machinery Accessories Co., Ltd. provides GA615-135 Loom Tappet 3104 Shedding Cam,3104 large peach discs for GA615 and 1515 double beam loom treads. The material is HT15-32 pig iron. The loom treads are in an "8" shape and are composed of curved surfaces with radius R100 and radius r103. The role of textile peach discs is to control the action of shed formation in the process of fabric weaving. They are the key accessories of loom treads.
The so-called R100 and R103 refer to the distance from the center of the inner hole to the cold hard surface in front of the loom on the symmetry line of the peach disc, and the unit is mm. The width and length of the two curved surfaces of the tread plate (3104) of the split loom are 156mm and 170mm respectively.

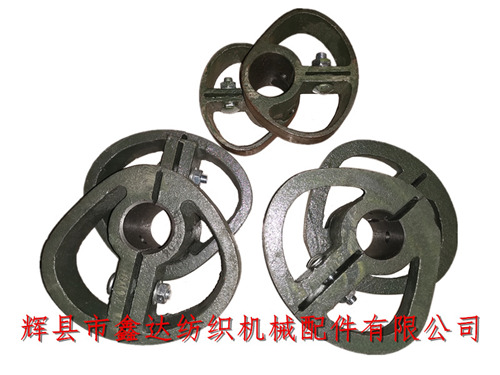

The above figure is a comparison between 1515 loom treads 3104 and 1511 peach disc E3,GA615-135 Loom Tappet 3104 Shedding Cam,Their inner hole diameter is 42mm. They are installed on the treads shaft (middle shaft) of the loom. The installation quantity varies according to the door width. The wider the machine, the more treads.
The height of the tread plate of the double beam loom is 89mm, and the weight of a single 3104 tread plate is 5.2kg. Check the abrasion of large radius with a fixed gauge, which shall not exceed 2.4mm. The surface of 3104 large tappet of double beam loom tread plate fitting shall be flat and smooth, grooving and cracks are not allowed, and the difference between peach plates of the same loom shall not exceed 0.8mm.
Opening time of loom: turn the crankshaft (crank shaft 3209) to the upper center, measure the distance between the reed and the rear edge of the breast beam (4306) according to the process, turn the head screw of the tread plate to the rear of the machine, lift the heald rod (3100-6), make the tread plate fully contact with the rotor (A00-3), level left and right, put a steel ruler on the head end of the heald rod, visually level, and then fasten the head screw of the tread plate with a wrench.
