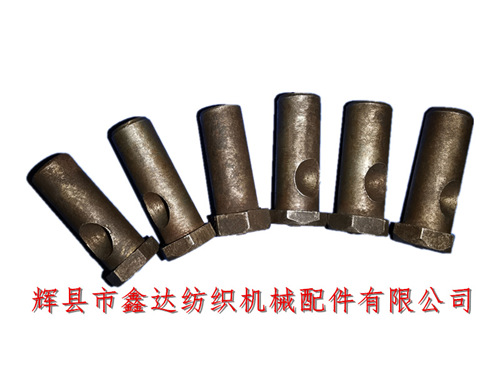

Xinda Textile accessories provides F237 fork pin, which is made of steel 20. It is a general accessory of loom and is suitable for shuttle looms of models 1511, GA611 and 1515. The diameter of F237 fork pin of loom accessories is 10mm, the effective length is 28mm, the total length is 30.5mm, the tail is hexagonal and the width is 12mm. It is connected with the starting arm F206 or 4102 of loom to fix the upper fork and lower fork and assist the clutch movement of weaving machine.
The concave position in the middle of the F237 shift fork pin is used for fixing the support head screws. Each loom uses 2. The weight of a single shift fork pin is about 0.02kg, and 100 pieces per package (plastic self sealing bag). It is a small steel product of shuttle loom, which is used together with F238 (GA611 is 0203) and F239.
Our company provides all kinds of pin shafts, short shafts, pins and other accessories of loom, with complete product types and reasonable prices; Note: GA615 uses two shift forks for each loom, regardless of up and down.
All textile enterprises are welcome to contact our company to obtain the information of F237 fork pin and the price of loom accessories. Textile accessories manufacturers support the customization and design of other products with special specifications. We sincerely welcome you to purchase F237 fork pins and other accessories.
