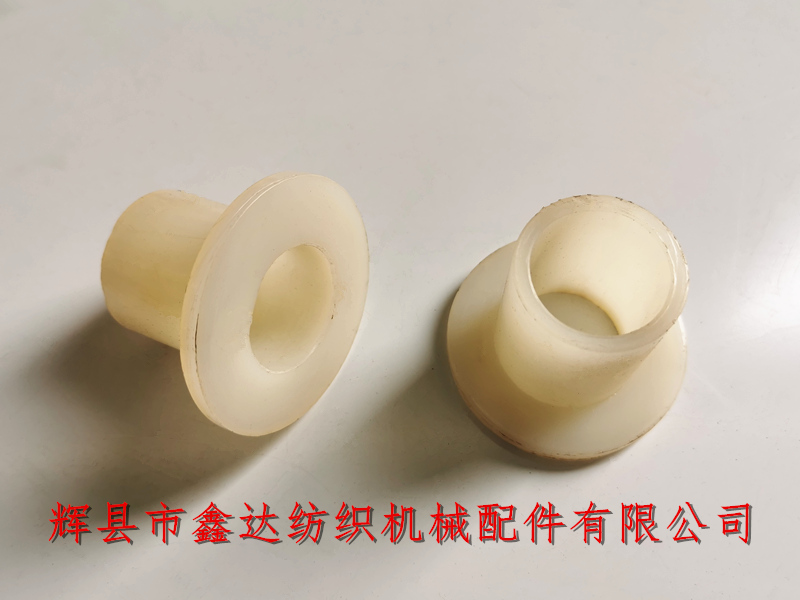

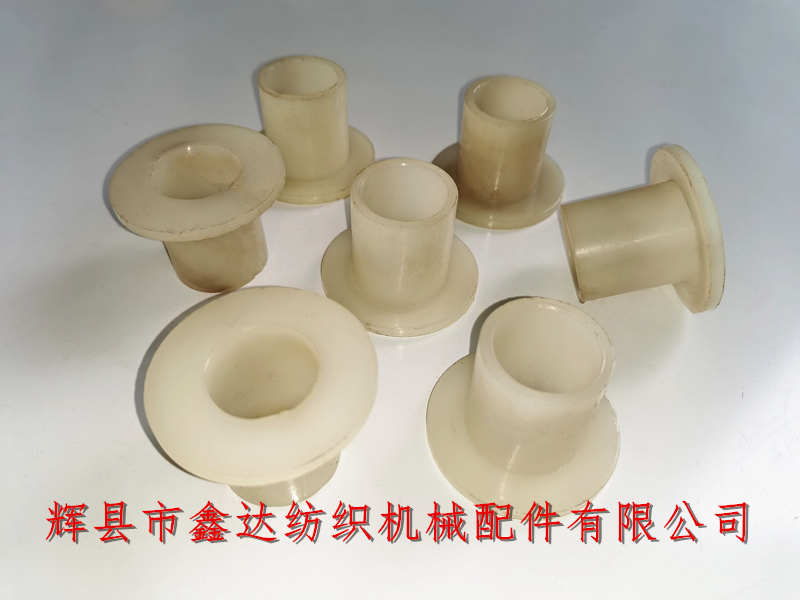

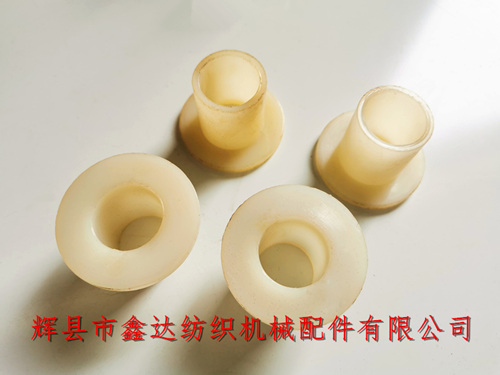

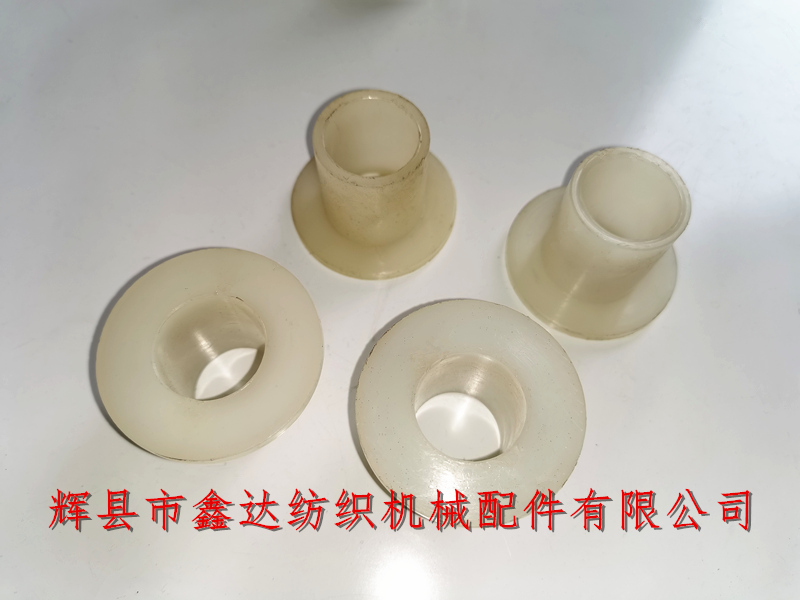

Huixian Xinda Textile Machinery Parts Co., Ltd. provides SJ12 worm shaft sleeves, textile nylon sleeves,nylon bush and external delivery accessories all year round. The total height of SJ12 worm shaft sleeves is 36mm, which is 32mm+4mm; The outer diameter of the SJ12 worm shaft bushing body is 30mm, the inner diameter is 24mm, the height is 32mm, and the diameter of the bottom circular outer edge is 50mm, with a thickness of 4mm. The industrial nylon bushing has advantages such as good wear resistance, damping and silence.Loom Bushing,Nylon Bush,Worm Shaft Sleeve,Shuttle Loom Parts.
The SJ-P-III let-off device is a common external let-off structure in textile machinery, which has the advantages of stable let-off, simple operability, and easy maintenance. The SJ12 worm shaft sleeve is pressed onto the worm bracket SJ14, and the vertical shaft SJ-11 (length 650mm, diameter 24mm, abbreviated as the vertical shaft) of the ratchet passes through the SJ12 nylon sleeve. The number of SJ-12 used in each weaving machine is 2pcs.
The part number of the external let-off device is usually represented by "-", such as SJ-03 tension spring sleeve, SJ-09 tension disc, "R" represents the right hand, "L" represents the left hand, and the letters A, B, C after the part number indicate that the accessory has been improved, and the order of improvement increases in ABCD order.
If you need to know or purchase SJ series worm shafts, SJ12 bushings, 1515 let-off accessories, GA615 loom accessories, and other products, please contact Mr. Yang of our company. You can also request a sketch of the SJ-P let-off device. Welcome to visit!
