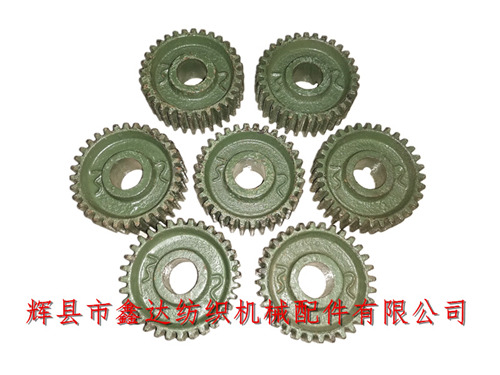

Our company provides all kinds of shuttle loom accessories and 32 tooth weft dense wheel loom change gear accessories throughout the year. The 32 teeth of the textile gear are represented by l33-32T, L33 is the general part number of the weft dense wheel of the shuttle loom, 32t is the gear with 32 teeth, the outer diameter of the loom gear is 61.5mm, the modulus = 61.5 ÷ (32 + 2) = 1.8, the inner hole diameter is 18mm, the gear thickness is 22mm, and the teeth of the loom change gear are cast teeth, 20 pieces per string.
The weft density wheels used in various shuttle looms have the same thickness, the same inner hole diameter and the same modulus. Other dimensions: for example, the outer diameter increases with the increase of the number of teeth. Each plain loom uses two change gears. Under normal circumstances, 37 teeth are the standard gear of the loom gear, and the other changes with the converted density.
Textile machinery gear accessories are widely used in weaving machines, mainly to drive or change the transmission direction (bevel gear, turbine and worm) in various structures. Ordinary loom gears are divided into spur gear and helical gear (also known as saw gear). The appearance of textile gear accessories is generally marked with the number of teeth.
L33-32t weft density change gear, also known as loom change gear, is used to control the weft density in the weaving process (measured within 2 inches). 32 tooth textile machine gear is suitable for weaving fabrics with low density or high density (high count), which shall be subject to the change of weaving process and standard gear.
The weight of a single 32 tooth weft density wheel is about 0.22kg. The weft density wheel is fixed on the front of l00-4 cored pinion or l00-6 conversion gear screw core assembly. If you need to purchase loom gear accessories such as cast tooth weft dense wheel, change gear, loom gear, etc., please contact Mr. Yang of our company for consultation.
