Huixian Xinda Textile Machinery Accessories Co., Ltd. has long provided C5 loom accessories adjusting weight rod. Its material is gray pig iron HT15-33, which is connected with C4 connecting rod and C27 connecting rod core. It is used to hang adjusting weight C6, control and change warp tension based on lever principle. It belongs to tension adjusting part of loom, and one is used for each loom.
C5 loom accessories: the diameter of the two holes of the adjusting heavy hammer rod is 12mm. The total length of the heavy hammer rod is 162mm, the width is 75mm, the thickness is 16mm, and the included angle is about 60 °. 1511 textile machinery parts, 44 loom tension adjusting device accessories - C5 adjusting hammer rod packaging specification is 10 per string.

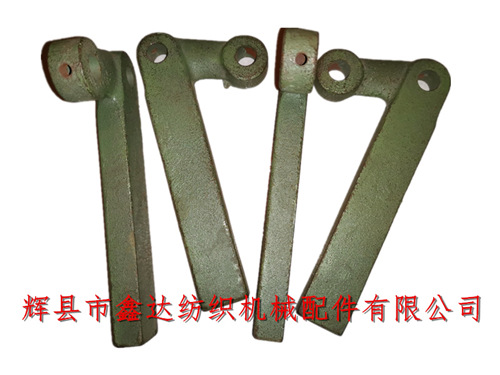

As shown in the figure above: the screw hole in the upper part is used to fix the C27 connecting rod core, which is tightened with square head M6 metric screw. The weight of a single C5 adjusting hammer rod is about 0.58kg, and the product is not divided into left and right hands. The weight of each C6 adjusting hammer is 1kg.
If you want to buy Textile adjusting weight, loom accessories, weight bar and other old shuttle loom parts, C5 Loom Accessories Adjusting Hammer Rod,please contact our company for details. We uphold the business philosophy of good faith and serve you wholeheartedly.
