Huixian Xinda Textile Machinery Parts Co., Ltd. provides old shuttle textile parts, lifting heald parts, M16 bending sliding plate, pig iron and cast iron parts of textile machine. The M16 bending slide plate is installed on the loom 3229 (bending slide plate foot) and used in conjunction with the heald lifting accessories M18 and M17. The diameter of the inner hole of M16 is 22mm and the outer diameter is 30mm. M10 screws are installed in the adjusting screw hole.

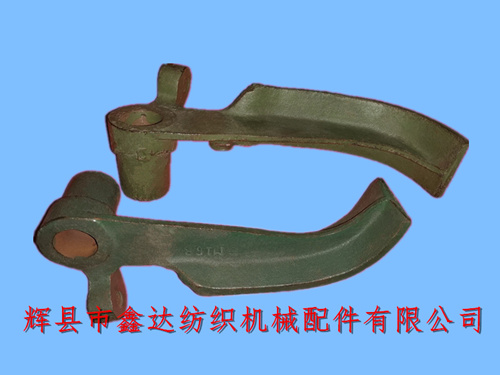

The bending sliding plate M16 is divided into left hand L and right hand R, as shown in the above figure. The total length is 193mm. K84 rotor rolls and rubs on the M16 smooth surface, and the width of the smooth surface is 39mm. Clearance requirements between M16 and sliding plate foot: 0.6mm for major repair and 0.8mm for minor repair. The shuttle throwing time is in contact with the curved sliding plate rotor K84. After the crankshaft is dead center, bend the sliding plate, the distance between the adjusting screw and the convex surface of the sliding plate foot is (4 ± 1) mm, and the transverse tolerance is 0.8mm.
When the surface wear of M18 bending sliding plate spring exceeds 1/3 of the steel wire diameter (4mm), it is necessary to check the wear of M16 notch groove. If it is serious, it needs to be treated or replaced.
The installation quantity of M16 bending slide plate of lifting heald part of old textile accessories on the loom is: 1 piece/set, the weight of a single accessory is about 0.65 kg, and the packaging quantity is 10 pieces/string. If textile enterprises need to purchase curved skateboard accessories, please contact Mr. Yang of our company for consultation. Welcome to patronize!
