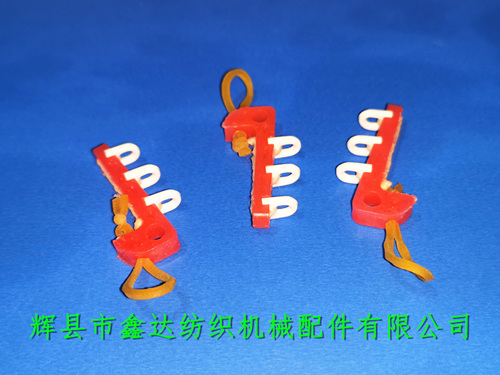

Huixian Xinda Textile Machinery Parts Co., Ltd. provides textile nylon accessories for silk loom nylon live bells (three eye porcelain ring flexible,Three Eye China Ring). Shuttle weaving machines include silk weaving machines, cotton weaving machines, hemp weaving machines, etc. The silk weaving machine live bells are generally thin in thickness and have a slender shape. There are two specifications for red live bells based on their length, each with a thickness of 5mm. The inner diameter of the pin screw hole is 4mm, and the total height is 34mm and 30mm, respectively, The 24 # silk weaving shuttle is made of nylon with a height of 30mm and is flexible.
The detailed dimensions of these two nylon living creatures are shown in the above figure. The white porcelain rings on the two three eye living creatures have the same size, with an inner length of 3.2mm and an inner width of 2.7mm. This data is based on physical measurements.
Huoling is mainly composed of strings, rubber bands, nylon bodies, and ceramic rings. Regarding the control of weft tension, the length of the rubber band at the tail of Huoling can be adjusted. The distance between adjacent ceramic rings is 5.5mm, and the thickness of a single ceramic ring is 2mm, with an outer width of 5mm.
The individual weight of a 30mm small living creature is about 1.5g, and the individual weight of a 34mm large living creature is about 1.7g. The minimum order quantity is 100 pieces, and the delivery time is 5-8 days. The delivery method is logistics or express delivery. Due to the number of porcelain rings being three, it is abbreviated as Three Eyes Huoling (Three Eyes Huoling). The total width of the three porcelain rings and nylon blocks is 10mm (small Huoling) and 11mm (large Huoling).
If textile enterprises and fabric manufacturers in various cities need to purchase textile nylon accessories such as silk loom flexible, K72 shuttle accessories, K251 nylon shuttle flexible, K611 wooden shuttle three eye flexible, etc., please contact Mr. Yang of our company. We sincerely welcome new and old customers to consult and negotiate!
