Huixian Xinda Textile Machinery Parts Co., Ltd. provides Textile Equipment-1080R/1010R/1015R/1020R Grooved Heddle,1010R, 1015R, 1020R and 1080R types of steel wire harnesses. The so-called 1010R refers to the specification of the Huasi ring embedded in the hole position of the steel wire harness. Different sizes of wire harness holes can meet the weaving needs of different fabric thicknesses, and commonly used are 1080R, 355R, 1020R, 1015R, and 1010R sliding wire rings (from large to small). The following figure shows a physical comparison between 1080R*0.4 (referring to the diameter of a single steel wire, measured in millimeters) and 1020R*0.4:
1010R, 1015R, and 1020R are commonly used in jacquard yarns, with smaller mesh sizes and sliding loops to reduce or decrease the wear of the warp yarn by the wire mesh during weaving. The comparison of the wire mesh of 1080R, 1010R, 1015R, and 1020R is to better determine the suitable wire mesh model for oneself.

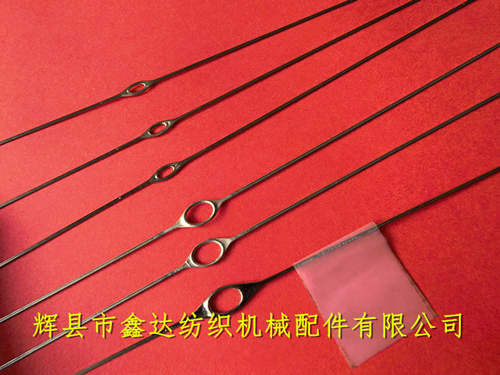

Due to the influence of light in macro photography, there may be slight differences between the actual product and the photo. Please refer to the actual product for details; The following is a comparison photo of 1010R, 1015R, 1020R, and 1015R sliding coils:
The minimum order quantity for this type of steel wire heald with sliding wire rings is generally 30000 pieces (of the same specification and model). Sliding wire rings are imported accessories and have a longer procurement lead time. Therefore, we hope that customers in various cities can place orders 30 days in advance. The steel wire bundles currently provided are mainly tinned (without nickel plating on the surface), as shown in the following figure:
If you need to purchase or learn about steel wire ring, please contact our company. We welcome inquiries, negotiations, and cooperation from everyone. You can also communicate with us about the detailed parameters and dimensions of tin welded steel wire healds, inlaid ring healds, textile equipment, Huasi rings for healds, and sliding wire rings (alloy rings).
