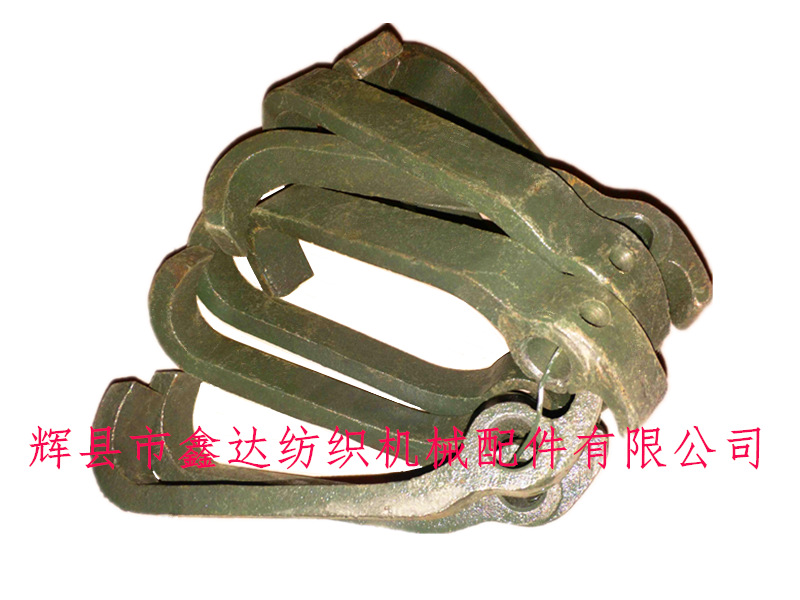

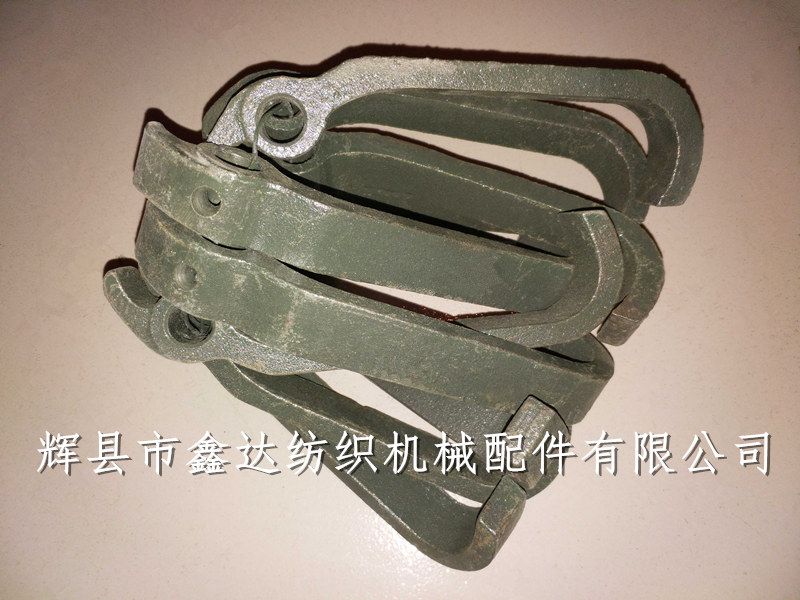

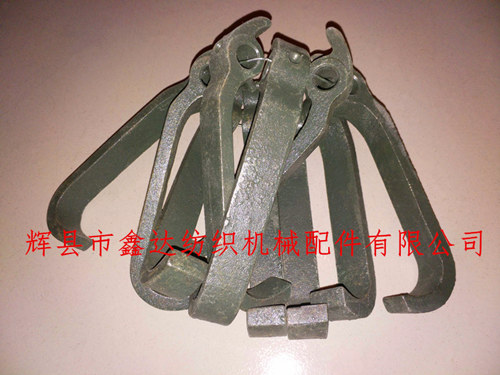

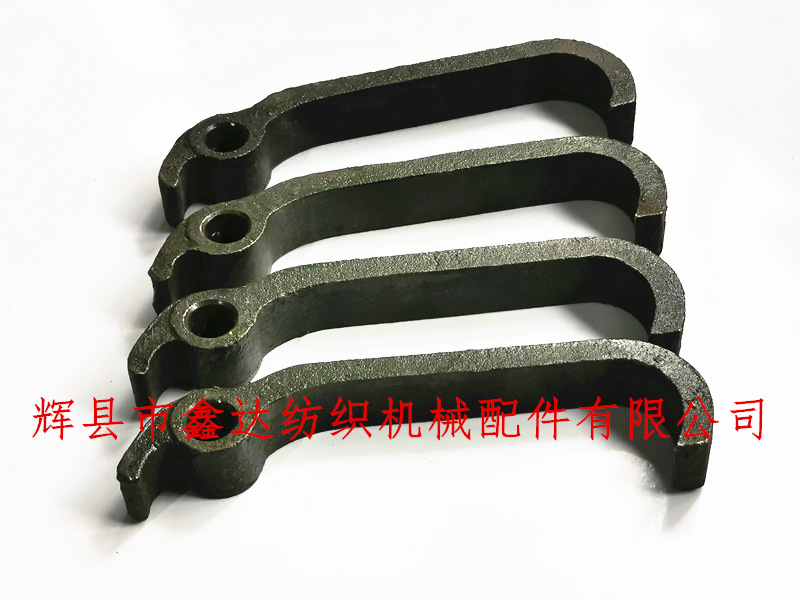

Our company provides the take-up hook L5 of 44 inch textile machine accessories, the take-up device part L5 of old shuttle loom, the material is pig iron, the inner hole of the take-up hook is 16mm, the length is 196mm, the textile machinery hook, the loom take-up hook, take-up rod, take-up finger, take-up rod sleeve and other accessories are complete. We are the supplier and seller of Xinda 44 accessories, Henan take-up hook and textile machine parts.
About the installation instructions of 44 loom accessories - take-up hook: turn the bending shaft to the back dead center, make the hook L68 contact with the teeth root of serrated wheel L7, and keep the hook L5 three and a half teeth away.

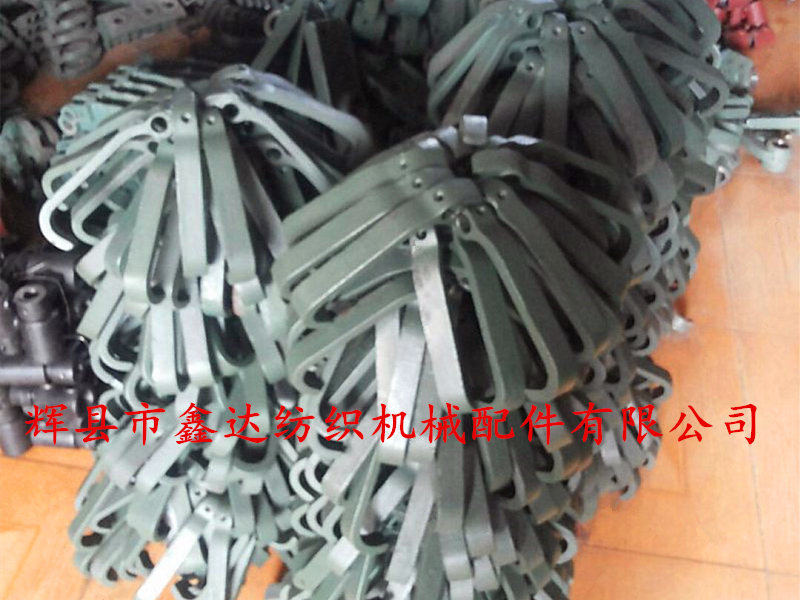

Each string of take-up hook accessories of the loom has 10 pieces, and the starting quantity is 20. The back of the take-up hook has a refueling hole. The inner hole is equipped with a L37 take-up hook bolt, which is fixed on the take-up rod L4 for matching use.
The inner hole size of coiler hook is 16mm, and the weight of single finished product is about 0.5kg.
It is produced by Huixian Xinda Textile Machinery Accessories Co., Ltd. and welcome to discuss and guide!
