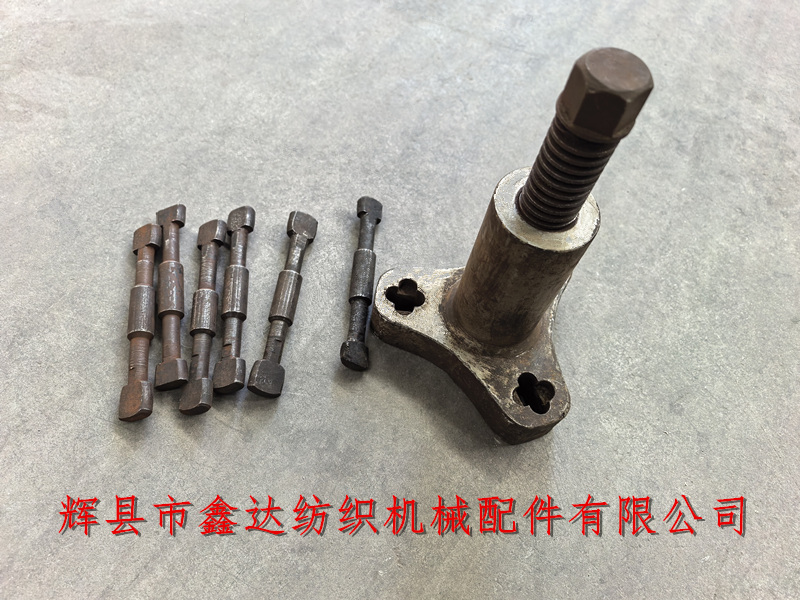

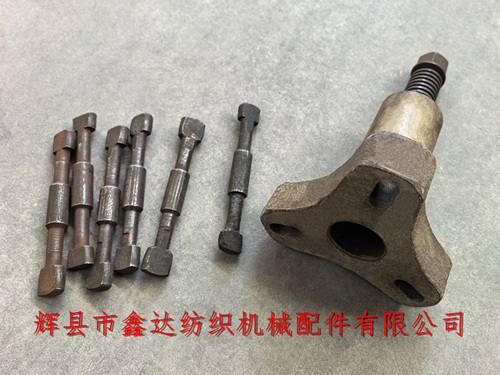

Huixian Xinda Textile Machinery Parts Co., Ltd. provides 1511-E-8-111 Wheel Puller Loom Disassembly Tool.Wheel Puller,Loom Tool,Disassembly Tool,Textile Tools,Loom Wheel Puller, When disassembling the loom step shaft gear E2 or 0204, use the 8-110B pull-out pin to remove the hook key (E8). The pull-out wheel 8-111A is used to disassemble the loom shuttle disc F8, so it is called a loom tool; Due to the installation of the rotor disc on the inner side (adjacent to the outer side of the weaving machine wall panel) and the use of flat keys for fixation, a wheel puller is required to remove it.

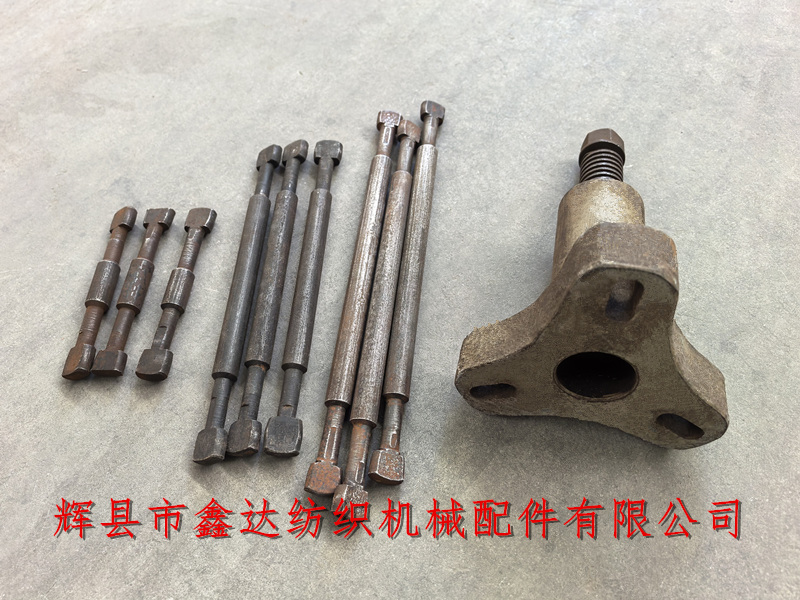

The bottom left corner of the above picture is a flat top view of the 1511E-8-111A lower wheel puller. The main body sleeve of the loom wheel puller has a threaded rod, which is used to rotate and pull the shuttle rotor disk out of the pedal shaft. This wheel puller can be used for dismantling shuttle loom equipment of models 1511, GA611, G1515, 1515, GA615, etc.

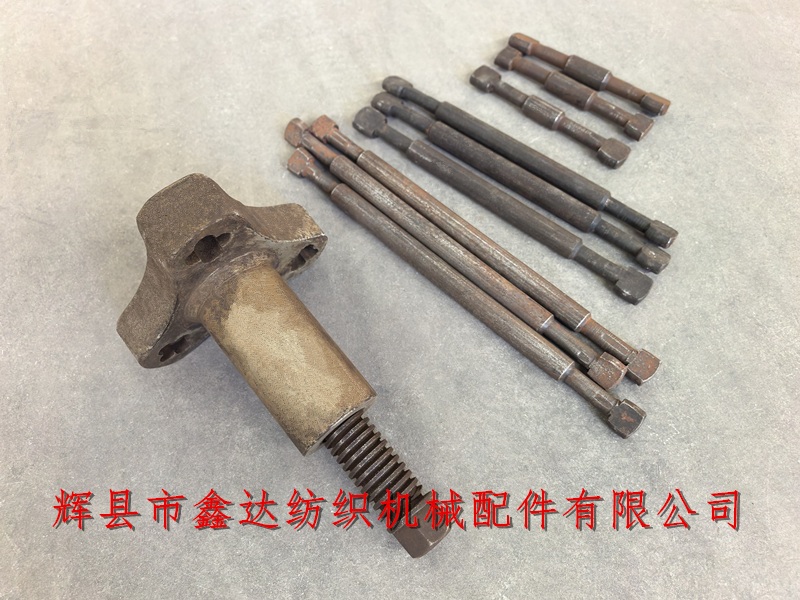

The diameter of the circular hole at the bottom of the wheel puller in the above picture is 38mm, and the other three holes are used for the left pull rod to pass through. After passing through the holes, it needs to be rotated 90 ° for limiting. The following is an upright top view of the dismantling tool for the loom - the wheel puller (bottom):
If you need to purchase 1511 wheel puller, 1515 dismantling tool, GA615 weaving machine tool, 8-111 wheel puller and other textile machinery tools, you can contact Mr. Yang from our company for consultation.
