Huixian Xinda Textile Machinery Parts Co., Ltd. provides Loom General Part Switch Support Foot F234, weaving machine accessories all year round | loom switch support foot F234 | textile cast iron parts. The loom switch support foot is divided into left and right hands, made of HT15-32 pig iron. The main length of the support foot is 137mm, the width is 10cm, and the total thickness is 4.5cm. The length of the ear is 6.5cm. The inner diameter of the two fixed circular holes on the top is 14mm, and the diameter of the two diagonal holes for fixing the switch is 7mm, The diameter of the lower inlet hole is 18mm.
The loom support foot F234 belongs to a universal accessory of the loom and can be borrowed from each other. It is suitable for use on different door width looms of models 1511, 1515, and GA615. The matching screws are one M6*10, one M6*30, two nuts BM6, and two washers 6 each.

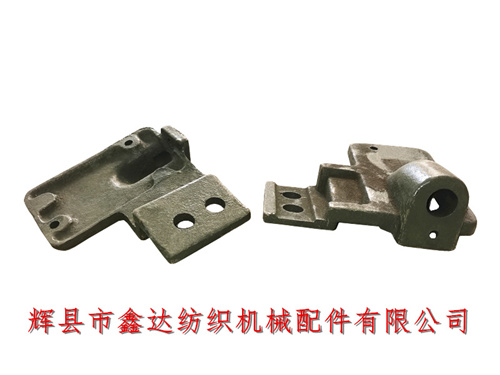

The above picture shows the front and back views of the loom switch support foot F234, which belongs to the starting component of the loom. The I11, I15, and F240 of the old loom are connected together.
The frame part of the 1511M loom has undergone slight changes in the shape of the rear crossbar and support, resulting in the rear crossbar being flush with the inner edge of the wall panel. Although the external structure of some other components has changed, the installation dimensions remain unchanged. If textile manufacturers need to purchase cast iron parts, loom switches, loom legs, and loom accessories, please contact our company!
