Huixian Xinda Textile Machinery Parts Co., Ltd. provides 1015R steel wire heddle tin soldered sliding rings (small ring head), jacquard heddles for textile machines, 1015R Steel Wire Heald of Jacquard Machine, and textile machinery parts. Wire Heald,Ring Heald,1015R Steel Wire Heald,Textile Equipment,The single steel wire diameter is 0.3mm or 0.35mm, with a total length of 301mm. The internal dimensions of the 1015R sliding ring are: inner length 3.2mm, inner width 1.2mm.
The above picture is a comparison between 1010R and 1015R Huasi. In the middle of the photo, the 1010R (inner length 2.6mm, inner width 0.9mm)*0.3mm specification is shown, while the other wire harnesses are 1015R*0.35mm specifications. Steel wire harness, also known as "harness" or "flower harness", is a small looped jacquard harness with a sliding wire ring embedded in the middle, which is an imported accessory. There are various types and specifications of woven textile equipment products - steel wire harness.

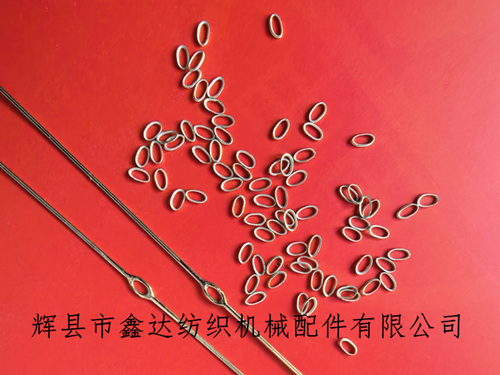

Comparison diagram of the comprehensive eyes between the 1015R sliding wire ring and the steel wire ring. Twin Wire Heald,1015R Steel Wire Heald of Jacquard Machine,The outer ring of the sliding wire ring has a groove, and the steel wire is fixed to the groove after being inserted. The thickness of the 1015R sliding wire ring is 0.6mm, and the thickness after soldering is 0.7mm.
The above picture shows the ears of the small ring head synthetic wire, with an inner length of about 3mm and an inner width of about 1mm. The ears of the small ring head synthetic wire are mainly used for hanging thread or rope (see the picture below). The following picture is the overall photo of the steel wire harness:
Explanation: Steel wires with a diameter of 0.3mm or 0.35mm need to be customized in bulk, and the delivery cycle is relatively long. If you need to purchase or order steel wire composite products (including small ring heads) with specifications of 1010R and 1015R, you can contact Mr. Yang from our company for consultation.
