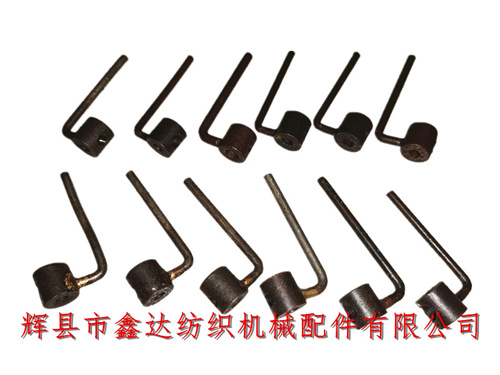

Huixian Xinda Textile Machinery Fittings Co., Ltd. is the supplier of J00-3 bell shaped curved arm assembly of textile machinery fittings.Shuttle Loom Part J00-3 Bell-Crank Arm, It provides bell shaped curved arm fittings composed of curved arm ferrule J23 and curved arm steel wire J51. 1515 textile machine fittings - J51 curved arm steel wire adopts 3.5mm diameter spring steel wire, while J23 is processed from A3 material. The consumption of J00-3 bell shaped curved arm on each loom is 1 piece, which is connected with J22 cross spindle of textile machinery fittings.
J00-3 bell shaped curved arm assembly is a textile hardware accessory, belonging to shuttle textile machinery accessory. The length of curved arm steel wire is 46mm, the diameter of inner hole of ferrule is 4.5mm, the outer diameter is 12mm, and the hole length is 12mm. The side hole is a square head flat end set screw for installing M5 * 10.
Overall dimension of J00-3 bell shaped curved arm of textile machinery accessories: length 53mm, width 26mm, color: black. The shuttle change inducer part j00-3 is applicable to 1511, 1515, ga611, 615 and other shuttle looms (automatic shuttle change type).
During installation, it is necessary to correct the contact between the bell crank J23 and the auxiliary connecting rod J24 so that the front and rear of the probe are not loose. Fix the position of the bell crank J23 so that the hook head of the cross ingot J22 falls into the ingot hook J28 to maintain a 17 ° inclination, and there is a 0.2mm gap between the lower part of the cross ingot hook and the plane of the ingot hook.
If domestic and foreign textile enterprises and manufacturers need to purchase shuttle textile machinery accessories,Bell crank arm,Shuttle loom part,Textile machinery part, J00-3 Bell-Crank Arm, please contact Mr. Yang of our company. We sincerely welcome your presence and guidance!
