Huixian city Xinda Textile Machinery Accessories Co., Ltd. provides SJ14 worm bracket with shuttle loom spare parts and External Warp let-off accessories all the year round. GA615 Shuttle Loom Parts, The material of SJ-14 worm bracket is HT15-32, the color is green, and the overall dimensions are: the bottom length is 18 cm, the width is 16.5 cm and the height is 16 cm; The inner hole of nylon sleeve is 24mm in diameter and 37mm in length, and the other big round hole is 45m in diameter and 29mm in thickness.
The dimensions of nylon sleeve on SJ-14 worm bracket of textile accessories are: the inner hole is 24mm, the outer diameter is 30mm, the diameter of the outer flange is 50mm, the length of nylon sleeve is 36mm, and the center distance between the bracket base and the round hole with nylon sleeve is 130 mm.

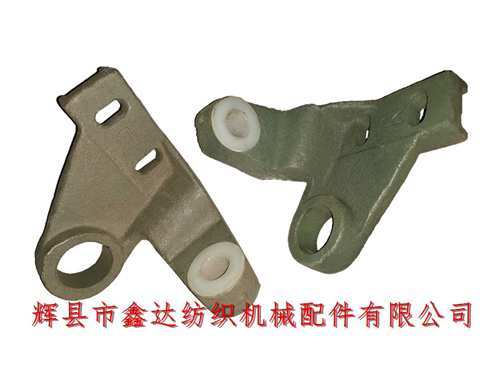

The above picture is a front photo of SJ14 worm bracket. On the left side of the picture is the left hand L and on the right side is the right hand R. The inner dimensions of the two screw fixing holes are: the inner width is 14mm and the inner length is 28 mm..
The above picture is the top view of 1515-SJ14. The weight of a single worm bracket is about 3.05 kg, and each loom uses one bracket. If you need to order loom worm bracket, loom spare parts,External Warp let-off accessories, SJ14 bracket and other products, please contact Mr. Yang of Xinda Textile Accessories for consultation!
