Huixian Xinda Textile machinery accessories provides Sulzer Projectile Loom Emergency Stop Switch Accessories, textile mushroom head rotary button accessories, emergency stop button of textile machinery equipment. It is mainly used for quick stop of loom warp, weft, transmission device, etc. in case of emergency, press the button switch quickly to realize quick stop and protect the shuttle machine. It belongs to textile electronic equipment products.

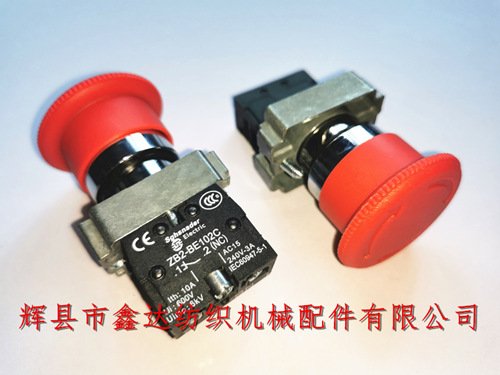

Mushroom head emergency stop switch (button type,Projectile Loom Emergency Stop Switch Accessories) is composed of three components. It is composed of mushroom button head, bracket and switch from top to bottom. The diameter of the inner hole of the bracket is 22mm. When the mushroom head button is pressed quickly, the shuttle machine failure repair is completed, it is necessary to rotate the mushroom head switch to start again.
The red button in the inner cavity of the bracket is the key component of the assembly, which is used for the start stop function. Projectile Loom Emergency Stop Switch Accessories,The textile button, shuttle emergency stop switch (rotary button), red button, blue button and other electronic equipment products are distributed on the control box of projectile loom. The outer box is shown in the following figure:
The package of the shuttle emergency stop switch is separated and packed in bulk, and it needs to be combined together during installation. The total length of the rotary emergency stop switch is 69mm (when the knob is pressed down), and the external diameter of mushroom head is 39.7mm. When the mushroom head button is rotated out, the total length is 73mm.
The starting quantity of textile mushroom head rotary button accessories of shuttle emergency stop switch is 5 sets, textile electronic equipment procurement, shuttle emergency stop switch wholesale, emergency stop switch replacement, textile button suit, mushroom head button matching, old-fashioned rotary button switch purchase can contact our company for consultation!
