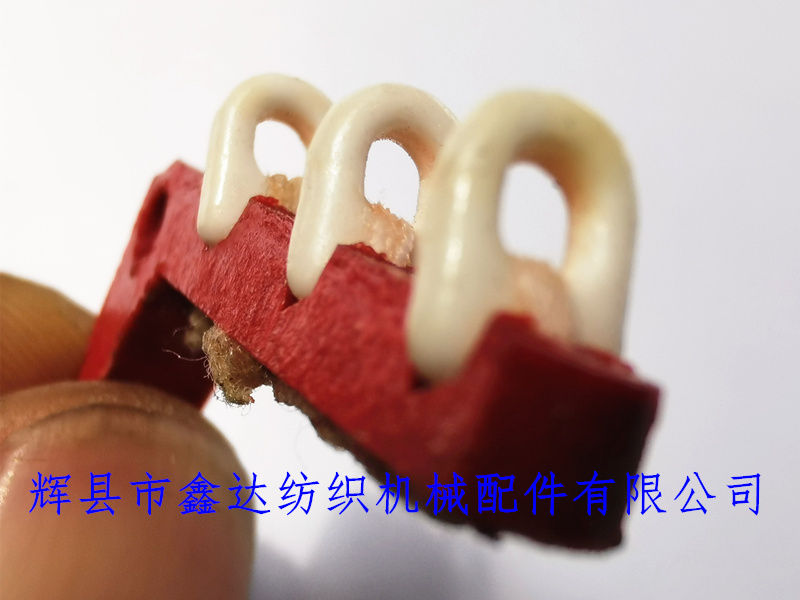

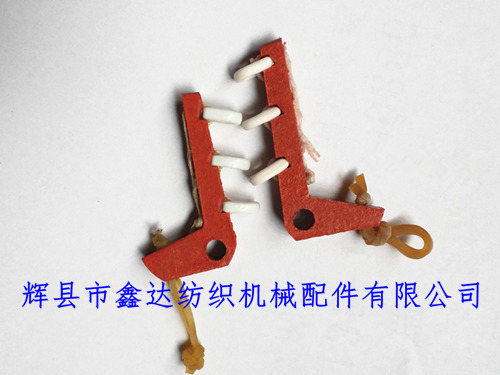

Our company specializes in providing various specifications of textile red steel paper flexible (movable bell), textile red paper glass fiber tensors. According to the external dimensions of textile tensors and the size of porcelain ring, we can divide them into three types: short tail long flexible, long tail long flexible, long tail short tensors, each of which has different uses. The flexible accessories used for textile machine wooden shuttle are determined by the shape of wooden shuttle, with width of 35x height of 25 Silk wooden shuttle uses short tail to activate, glass fiber shuttle uses long tail to activate bell.

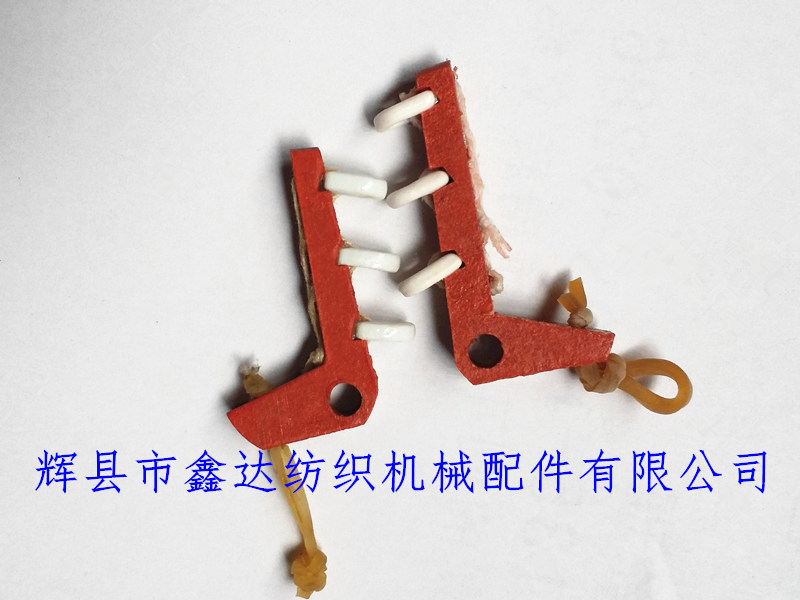

Photo comparison of long tail live bell and short tail live. The left short tail is mainly used for ts-7, silk wooden shuttle and other products.

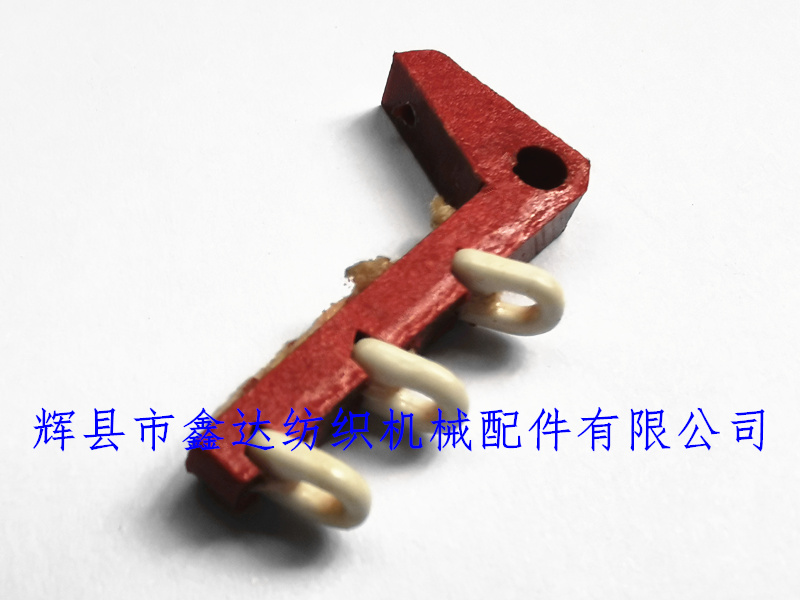

Long tail small porcelain ring live bell, 34mm high, 16.5mm wide, about 3mm long inside the porcelain ring, rubber band installed on the tail.

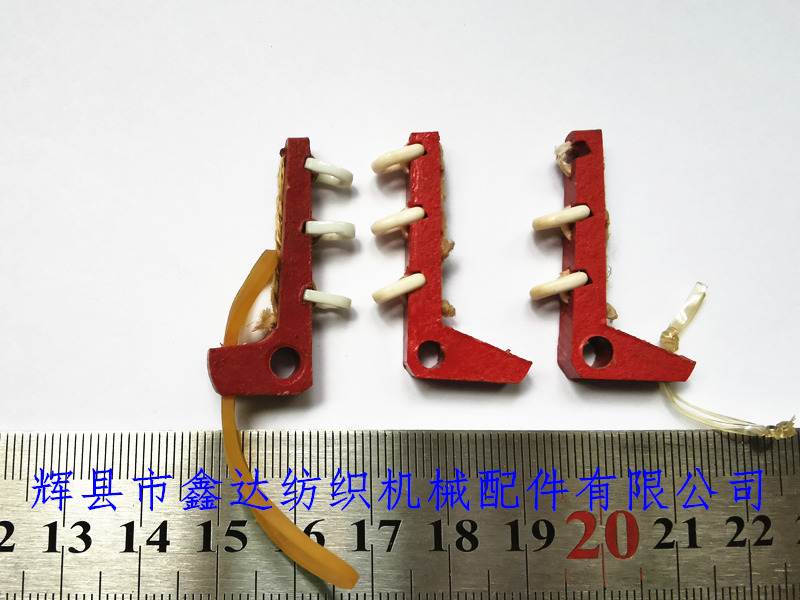

The length of enlivening (thruster) is different (32mm and 34mm), and the spacing of its three ceramic rings is also different. New wooden shuttles can be processed according to enlivening, but they need to be used on the old glass fiber wooden shuttles correspondingly, otherwise the ceramic rings are easy to be broken.
Wood shuttle flexible custom-made, textile tensioner processing, red steel paper flexible wholesale please contact our company for details, we provide all kinds of specifications of red steel paper flexible (movable bell) products, honest operation, welcome the majority of textile enterprises to purchase.
