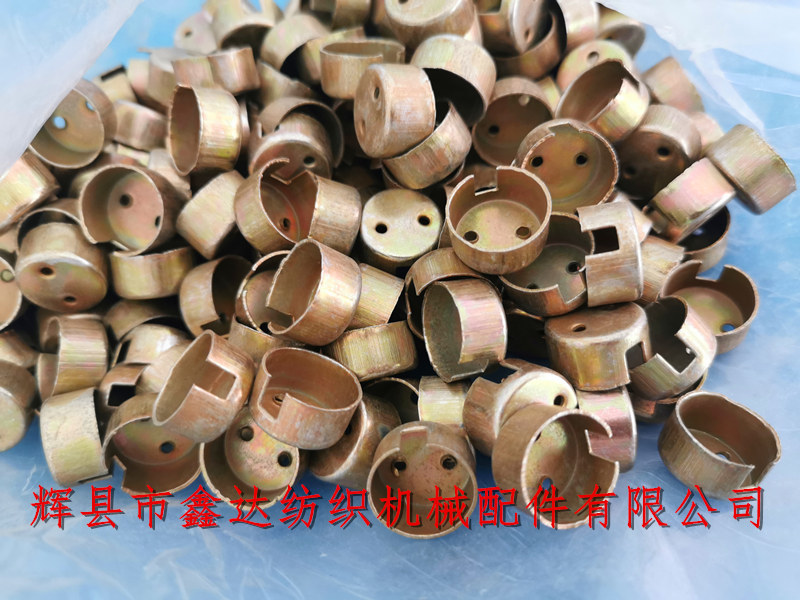

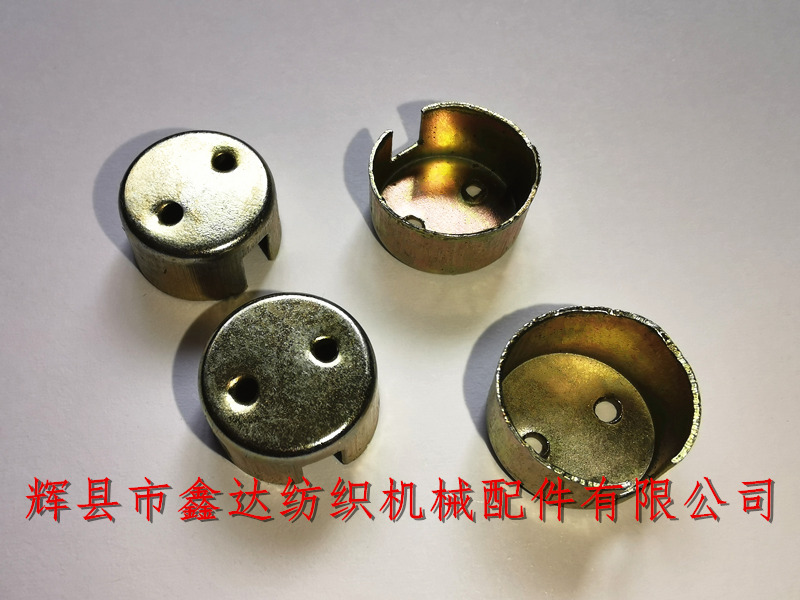

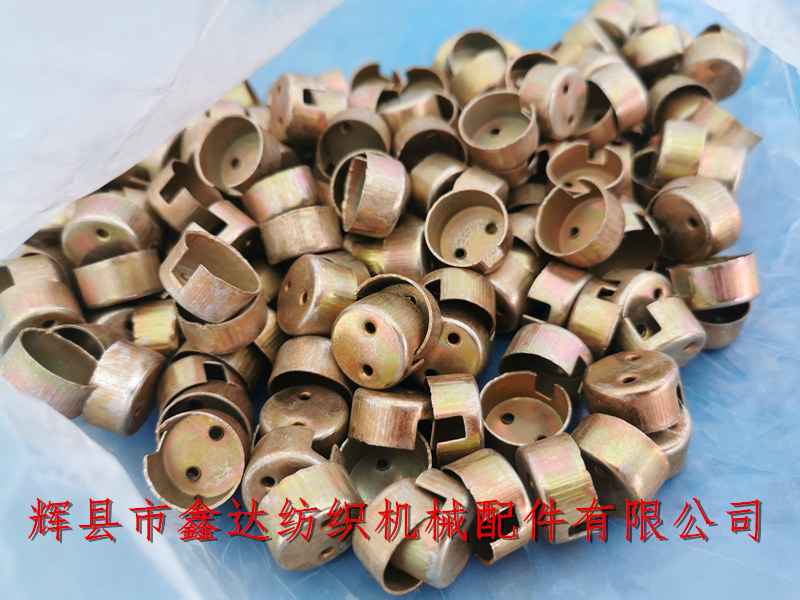

Our company provides various specifications (large, medium and small) of woven reed hat (round iron hat) accessories all the year round. Generally, medium-sized iron hat (block hat) is used. The spinning round head iron hat is fixed on two ends of the upper and lower beams of the woven reed.Loom Reed Cap (Round Iron Cap) Parts -It is installed and used with shoeshine. The outer diameter of medium-sized reed iron hat is 15mm, the inner diameter is 14mm, and the height is 8mm. There are two fixing holes for shoeshine on the top of the reed hat.
The reed used in shuttle loom includes reed guard, reed cap, wood strip, nylon rope, cloth tape, AB glue and other materials and accessories. Each reed is made of 4 guard caps.Loom Reed Cap (Round Iron Cap) Accessories.
About the weight of weaving reed cap round iron cap: 610 pieces / kg (medium), the width of side cutting groove of weaving reed iron cap is 3.6mm, the length of cutting groove is 5mm, and the hole diameter of upper part of iron cap is about 2mm.Loom Reed Cap (Round Iron Cap) Accessories.
The round head iron cap used in textile reed belongs to stamping part, which is formed by stamping once. The groove is mainly used to wrap the reed guard to prevent the reed teeth from falling off due to the loss of the reed guard. If you need to buy Textile iron cap, reed accessories, reed accessories of loom, you can contact our company for consultation in time. We have been engaged in the production and sales of textile accessories for 20 years, with a complete range of shuttle products, supporting the customization of products with special specifications.
