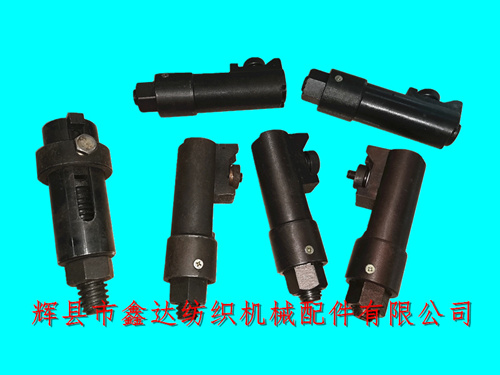

Huixian Xinda Textile Machinery Accessories Co., Ltd. provides textile key puller, loom tool pin puller 8-110B all year round. This textile tool (Key Puller,Piston Actuator) is divided into large and small types. The total length of the large key puller(Piston actuator) is 172.5mm, the external diameter of the tool body is 47.5mm, the diameter of the external retaining ring is 63.5mm, and the diameter of the main screw is 24mm; The total length of the small key puller is 156mm, the outer diameter of the main body of the pin puller is 39mm, the outer diameter of the two fixing screws is 44mm, and the diameter of the main telescopic screw is 20mm. Both of these key pullers are suitable for disassembling hook keys with a width of less than 14mm.
The above figure shows the large key puller (Piston Actuator), which adopts the outer hoop design. The hook head extends downward into the clamping groove, the supporting head screw presses the movable head, and then rotate the tail nut to remove the hook head key from the machine. The weight of a single large key puller is about 1.65 kg. The pin puller (Shuttle Loom Tool) has the characteristics of simple design, heavy appearance, but simple function.
The pressing block above the small key puller can be disassembled and installed upside down. There is an M10 notch above the pressing block, which is used to disassemble the 10 point hook key. The single weight of the small pin puller is about 1.2 kg. This textile tool is easy to carry and has many functions.
The commonly used hook keys of looms are generally the hook keys N11 used by 3702 (N9 propulsion shaft), the hook keys E8 used by 3209 (F38 crank axle， bending shaft) and 3301 (F9 Tappet shaft and middle shaft), and the hook keys N12 used by D4 motor wheel (N5 nozzle connecting rod and N9 can also be applied). The part number of the large key puller is 8-110 and the part number of the small pin puller is 8-110b. The two textile tools are left and right, and can be used for looms with different door widths.
If you need to purchase textile tools of shuttle machine - Textile key puller,Textile Hardware Tool, loom pin puller, Piston actuator and other tools of loom, please contact Mr. Yang of Xinda Textile accessories for consultation. We wholeheartedly provide key puller, pin puller, textile tools and loom tools of various models and specifications. Welcome!
