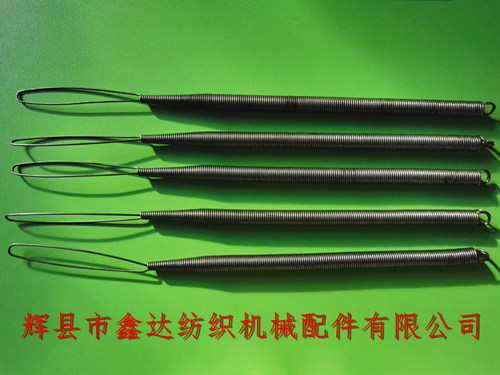

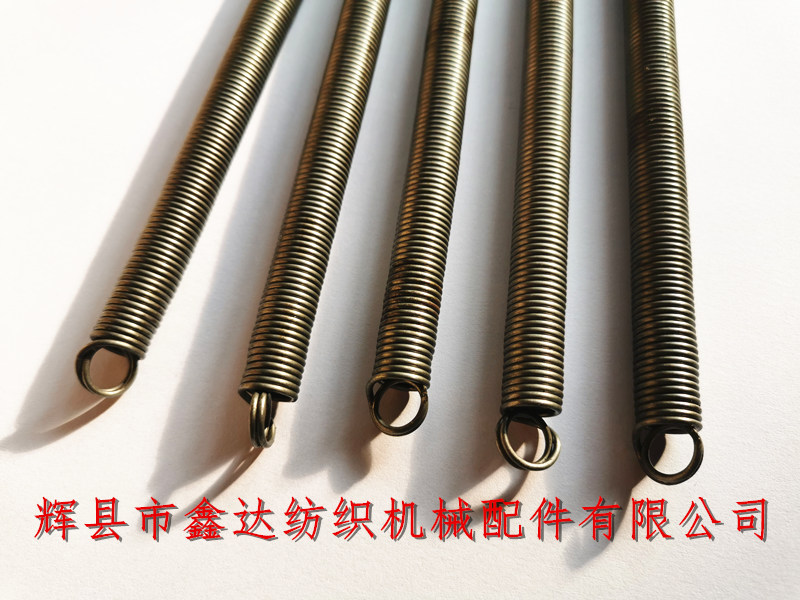

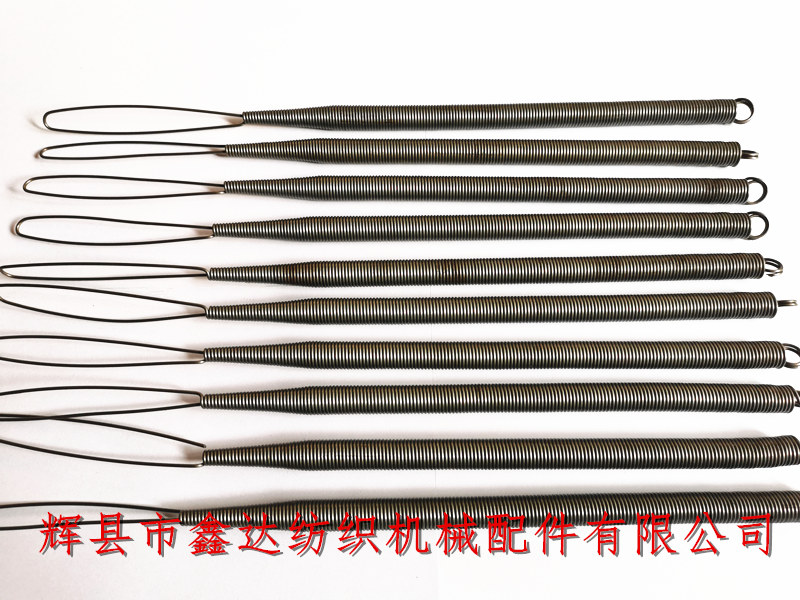

Huixian Xinda Textile machinery accessories provides 1511 and 1515 multi and dobby loom tension springs: T50-1 pig tail spring, also known as heald return spring, Multi loom spring,Dobby loom spring,Tension spring,which are mainly used to pull the heald frame for reset. The total length of pig tail tension spring T50-1 is 38.5cm, the material is spring steel wire with a diameter of 1.5mm, the outer diameter of spring body is 13mm, the front is pagoda shaped, and the total length of spring body is 17cm, The inner diameter of the tail pull ring is 10mm.
Each dobby loom uses 32 pcs T50-1 tension springs (16 heald frames, 2 under each heald frame), which are connected with T49 heald return spring lifting feet and T106 heald return spring adjusting hoop of the loom.
T50 thickened type is used for the wide dobby loom, with an outer diameter of 18mm. Multi And Dobby Loom Tension Spring T50-1 In order to increase the tension of heald frame, double T50-1 traction heald frame is used for reset.

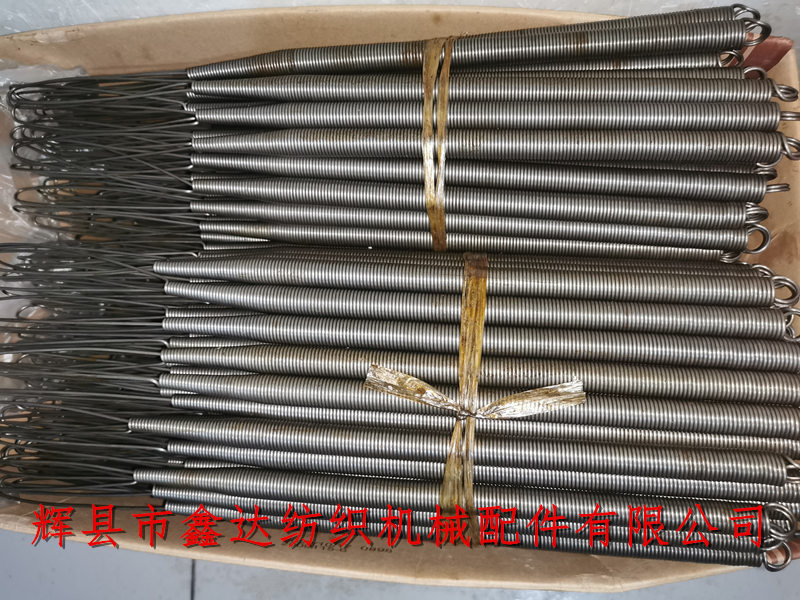

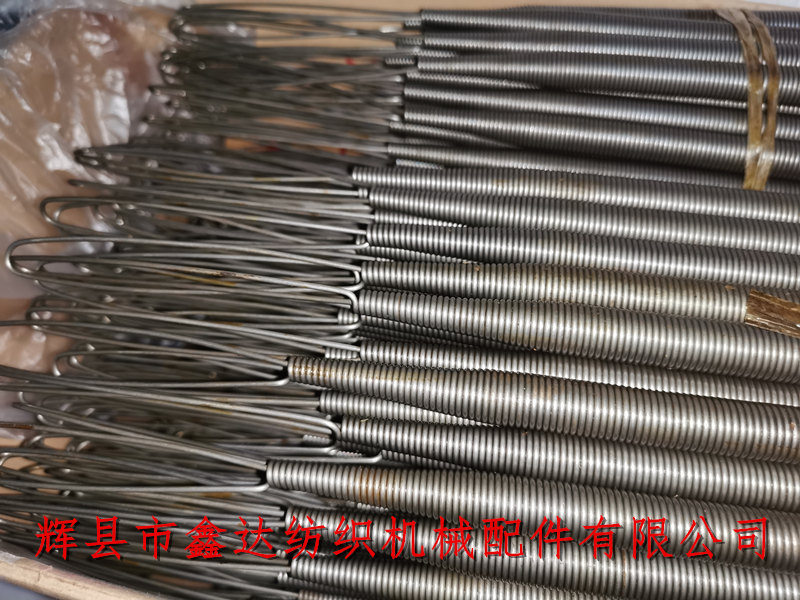

In addition, loom spring T50-1 can also be used in simple code loom, weft winding machine and other textile equipment. They are generally used as tension spring reset. Multi loom spring,Dobby loom spring,Tension spring,As shown in the figure above, there are 50 pieces in each bundle and 500 pieces in each bag. The weight of a single pig tail tension spring is about 0.1kg.
If you need to buy loom spring,Multi loom spring,Dobby loom spring,Tension spring, leaf spring, bottom spring, torsion spring and other textile hardware accessories, please contact Mr. Yang of our company for details! Welcome to cooperate!
