Huixian Xinda Textile machinery accessories has long provided Loom Spare Part O44 Warp Stop Hanger Foot,the hanging feet of O44 warp stop frame for 1511 loom parts. The hanging feet of O44B loom are 13.1cm long and 39mm wide. They are made of gray iron. The hanging feet of the warp stop frame play a connecting role between the warp stop frame and O101 / O102. The size of the square hole is 11mm * 13mm, and the width of the upper circular hole is 14mm, The warp stop of each loom uses 2 hanging feet.

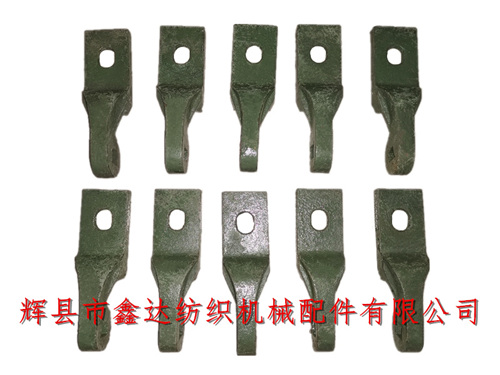

The figure above shows the front view and back view of the hanging feet of O44B warp stop frame. It is installed upside down on the inner side of the wall panel of the loom, one on the left and one on the right. The 1511 warp stop frame device is suitable for textile machinery and equipment with specifications of 44 inches and 56 inches of single beam.
The above figure is the side picture of the suspension leg O44B of the warp stop frame. There are generally two kinds of faults in the warp break self-stop device of 1511 textile machine: one is continuous self-stop; The other is non-stop menstruation. State 1: the shutdown hoop O14 hangs on the guide groove foot L1 and shuts down the vehicle through a series of transmission, so it can be diagnosed as a continuous self-stop fault. State 2: there are long warp defects on the cloth surface.
Theoretically speaking, the position of warp stop frame of loom should be determined according to the warp position line requirements determined by various fabrics with the middle guide rod O39 as the reference point. In order to facilitate installation, the distance between the front edge of suspension arm O101 / O102 and the front edge of wallboard is generally measured to determine the front and rear positions of the suspension frame.
The former is 210 mm and the latter is 25 mm. The former is 203.2 mm (8 inches) and the latter is 25.4 mm (1 inch) on the G-type loom. If you need to buy 1511 textile machine parts, 44 inch loom warp break stop, textile warp stop frame, textile machine parts, 56 inch warp break stop device, O44 warp stop frame hanging feet and other products, please contact our customer service!
