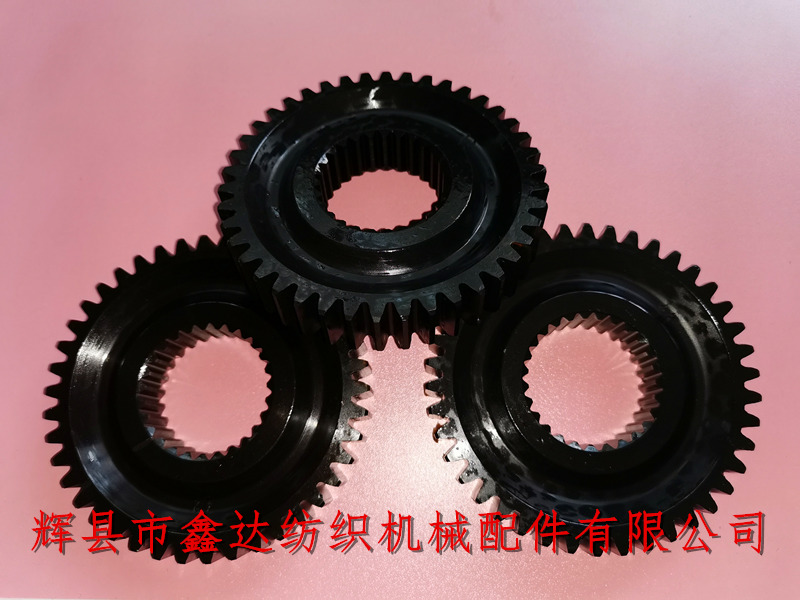

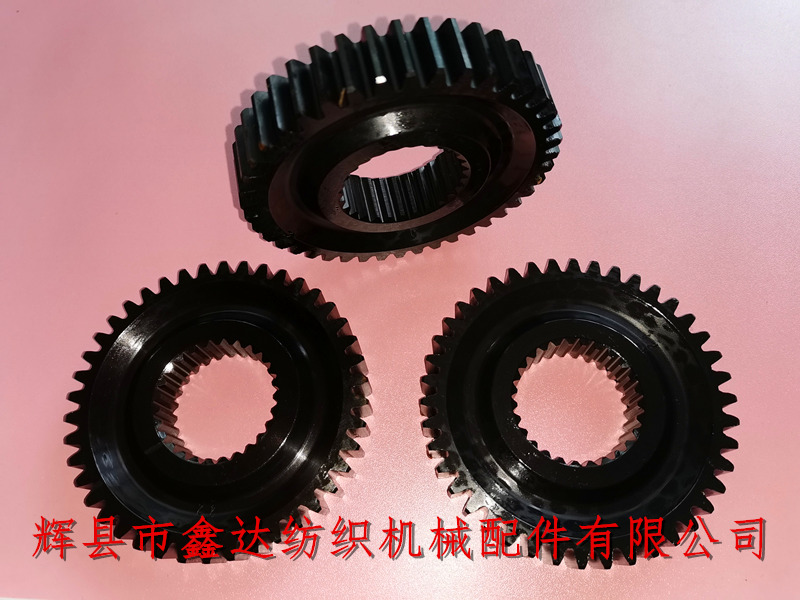

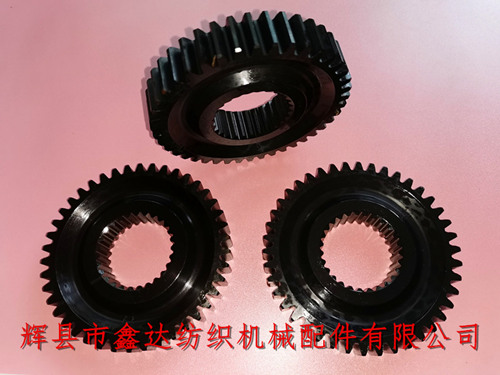

Huixian Xinda Textile Machinery Accessories Co., Ltd. provides weft change gears (Weft density wheel) for various door width projectile looms, including P7100, TW, PU and other specifications of weft density change gears with various tooth numbers (referred to as weft density gear or weft dense teeth for short). The material is 45? Steel, the surface is phosphated, and the color is black. The middle hole of weft dense wheel is spline, which is fixed on the take-up spline shaft of projectile loom.
The thickness of weft density wheel of projectile loom is 20 mm, the outer diameter of 42 teeth weft dense roller is 11 cm, modulus = 2.5, the diameter of inner hole of gear spline is 45.5 mm, and the weight of single gear is about 0.9 kg. The door width specifications of Swiss projectile loom are: 130 inch (330cm), 153 inch (390cm), 540 type, etc.

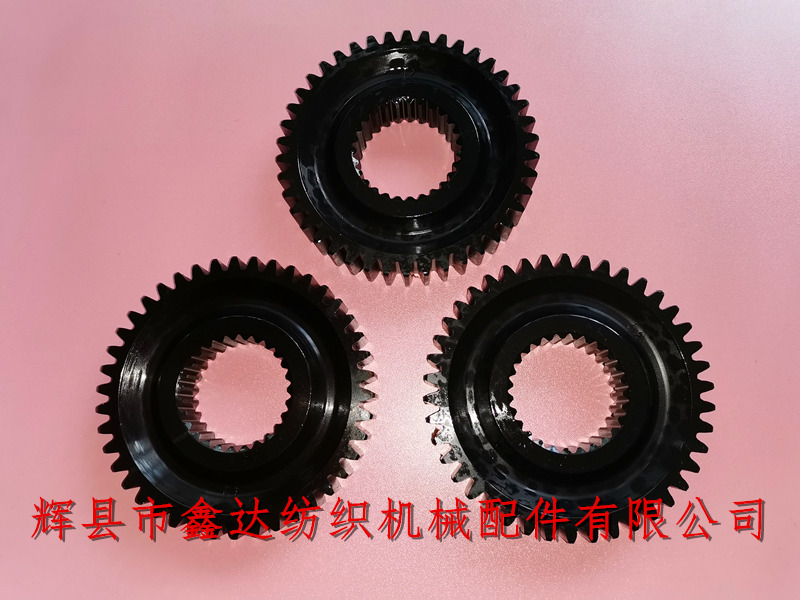

The number of splines of weft dense wheel of Sulzer shuttle machine is 27 teeth. The upper picture shows the front photo of weft dense tooth, and the lower picture shows the plane and side elevation of gear. If necessary, please contact our company for quotation of relevant coiling parts of Swiss shuttle machine.
Our company provides various specifications of TW weft density wheel, Pu weft density change gear, P7100 weft density gear, D1 loom weft density wheel, shuttle loom parts, projectile loom textile accessories, Swiss projectile loom take-up parts and other products. The initial quantity of textile gears (42t weft density wheel, change gear) is 5, and the delivery time is about 4-7 days.
