Huixian Xinda Textile Machinery Parts provides 1515-4112 triangular pulley cover GA615 borrowed cover, GA615-4112 V-belt Pulley Protective Cover. The 4112 weaving machine cover is connected to 4113 (triangular pulley cover foot) and 4114 (cover foot) on the 1515 weaving machine, and is used in conjunction with 4124 (cover foot) and 4125 (cover foot connection plate) on the GA615 weaving machine.

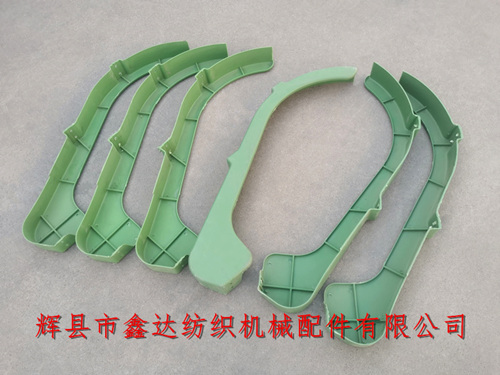

The above picture is a front view of the 1515-4112 loom Protective cover, which is divided into a left phone and a right phone. The left side of the picture is the right phone, and the right side is the left phone. Their materials are ordinary industrial plastics.
The cover used on the 1515/GA615 loom has 6 fixing holes (diameter 9.5mm), and the two holes at the tail are fixed to the 1511-D33 cover support feet using M8 bolts.
The 1515 model weaving machine uses fixed support legs D33+4113+4114 (connected to the D34 crankshaft gear cover); The fixed foot used for GA615 model is D33+(GA615-4124)+(GA615-4125).
If you need to purchase 1515-4112 triangular pulley cover GA615 borrowed cover, protective cover, 1511 loom cover, 1515 pulley Protective cover accessories, GA615 loom accessories and other products, please contact Mr. Yang from our company for negotiation. Welcome to cooperate!
