Huixian Xinda Textile accessories provides Textile Machine Parts Nylon Sleeve K77x78B, and straight barrel handle nylon sleeve is applied to the old British weaving machinery. Each loom uses 2 sets. Its combined inner hole diameter is 38.5mm and length is 65mm. The pipe wall thickness of the nylon sleeve is 5mm and the outer diameter is 48.5mm. After cracking, there are positioning pins and positioning holes. The weight of each set is about 0.05kg.
The textile plastic sleeve and nylon sleeve k77x78B are installed on the latch handle, which is convenient for installation and disassembly, and can protect the crank shaft of the loom from wear during high-speed operation. The textile nylon parts, plastic parts of the weaving machine and bushings at special parts are widely used in the textile industry.

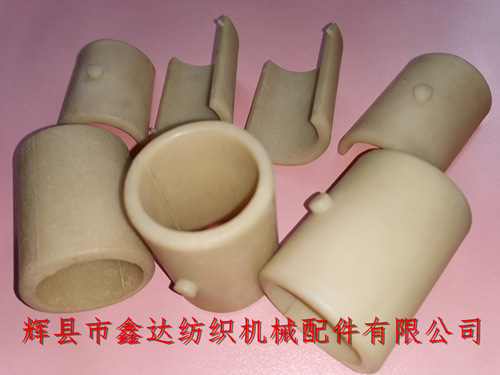

The figure above shows three sets of handle bearing shells (B-type weaving machinery accessories - handle nylon sleeve) after disassembly. When the handle bearing cover of the loom is tightened, the two semicircular nylon bearing shells closely fit to control the size of the inner hole to meet the requirements of daily use.
If domestic and foreign textile enterprises and trading companies need to purchase textile nylon sets, Textile Machine Parts Nylon Sleeve K77x78B and other products, please contact Mr. Yang of our company. We can provide hundreds of textile nylon products and semi-finished products.
