Our company provides 1511 type textile machine accessories - Multi Arm Pulling Knife T28/44 inch old fabric machine accessories/Textile cast iron parts.Dobby Loom Spare Parts, Detailed information on the size, weight, and other details of the T28 Pulling Knife: the total length of the old fabric machine multi arm zipper T28 is 375mm, the width is 35mm, the thickness is 18mm, and the inner width of the support bottom middle groove is 15mm; The diameter of the shaft heads at both ends is 16mm, the length of the shaft body is 37mm, and there is a stop pin hole at the front.Multi arm loom puller For 1511 Dobby Loom.

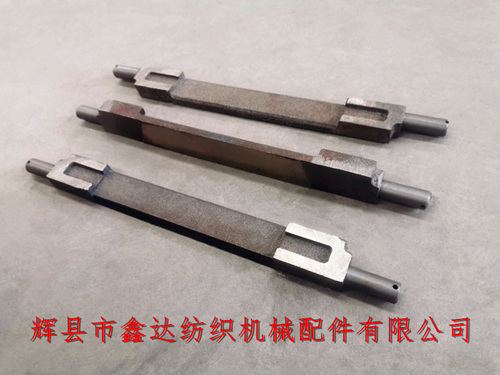

The above figure shows the back view (top and bottom) and side view (middle) of the T28 old fabric machine's puller. The Pulling Knife of the 1511 type multi arm loom is relatively short and made of cast iron. The front view is shown in the following figure:
The multi arm lifting device is used to control the lifting and lowering of the frame. The coordination relationship between the puller and the hook is that when the puller lifts the frame, the hook returns from the front end (high position of the frame) to the starting position, and the puller has to retreat back enough. At this moment, the puller and hook have been disengaged.
The weight of a single T28 is 500 grams. The multi arm zipper T28/44 inch old fabric machine accessories/textile cast iron parts are generally packaged in woven bags, with 30 pieces per bag. This accessory is not divided into left and right hands, and the number of pieces used for each weaving machine is 2 PCS.
The T28 multi arm accessory for the old fabric machine plays an important role in the working cycle of the equipment and is also a vulnerable part of the multi arm device. If you need to order textile knives, multi arm knives, old fabric machine accessories, textile accessories,Multi Arm Pulling Knife T28 Cast Iron Parts, textile machine accessories and other products, please contact Mr. Yang from our Xinda Textile Machinery Parts Company for consultation. We sincerely welcome your visit.
