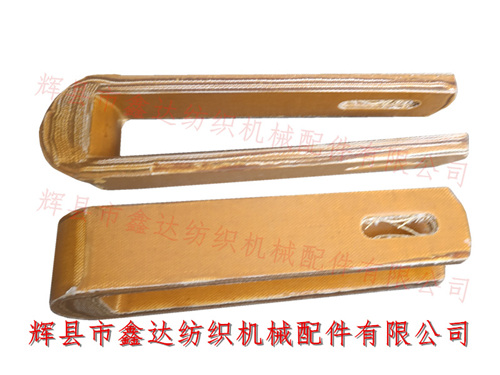

Huixian Xinda Textile Machinery Parts Co., Ltd. provides buffer belts/K274 velvet machine pull belt accessories/K72 rubber accessories. The circumference of K72/K274 velvet machine pull belt is 430mm, the total height is 40mm, the thickness on one side is 10mm, and the width is 50mm. Although it has differences from the specifications used abroad, it can be replaced with each other. The quantity used for each loom is 2.
Textile velvet long and short drawstrings, the above parameters are expressed in terms of long drawstrings. The main function of this specification of drawstring is to be used as a shuttle feeding device for K72/K274, ensuring and limiting the starting position of the weaving machine while also providing cushioning.
There are two flat and long grooves on the side of the drawstring, which are used to adjust its fixed position and adjust the starting position and stroke range of the shuttle board; The shuttle board swings back and forth in the middle of the tension belt, and the thicker position at the tail provides a buffer for the shuttle board to return to its original position, resulting in greater force.
The material of this buffer belt/K274 velvet machine pull belt accessory/K72 rubber accessory is rubber+nylon cloth layer. Its packaging is in cardboard boxes, with 100 pieces per box and a minimum order quantity of 50 pieces. The delivery time is 5-7 days. If you need to purchase K274 drawstring, textile buffer tape and other products, please contact Mr. Yang from our company for consultation.
