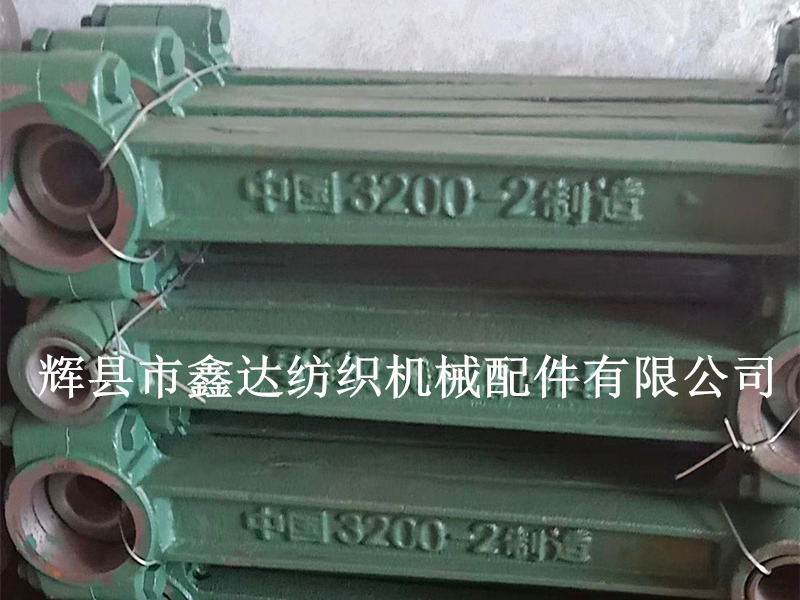

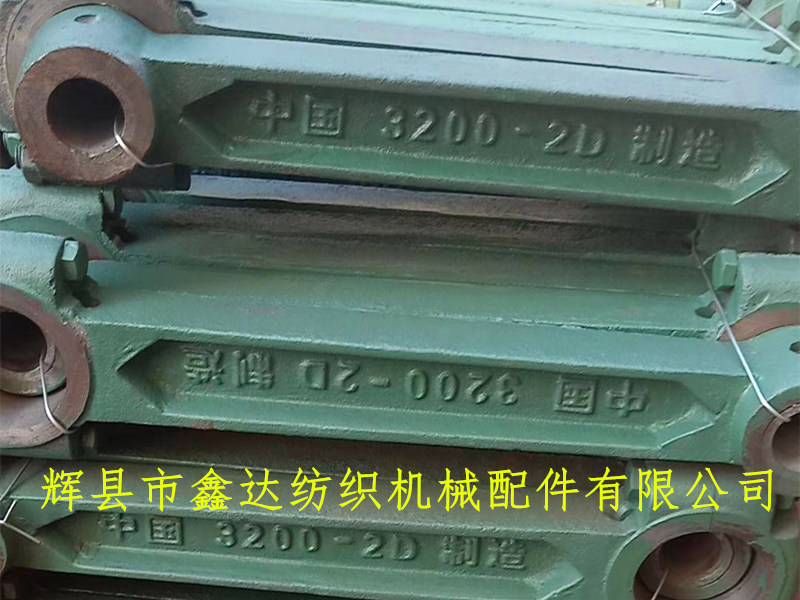

Henan textile accessories provides 3200-2d accessories of 1515 loom for a long time(handle assembly). The loom handle is composed of K79 bushing, K207 screw, 3206E handle cover and 3204 handle. The inner hole of K79 at the end of the handle is 25mm and the length is 50mm. The handle is the key part to connect the crankshaft and the reed. The weft is weaved into the cloth surface by the reed by turning at the bent handle of the crankshaft.

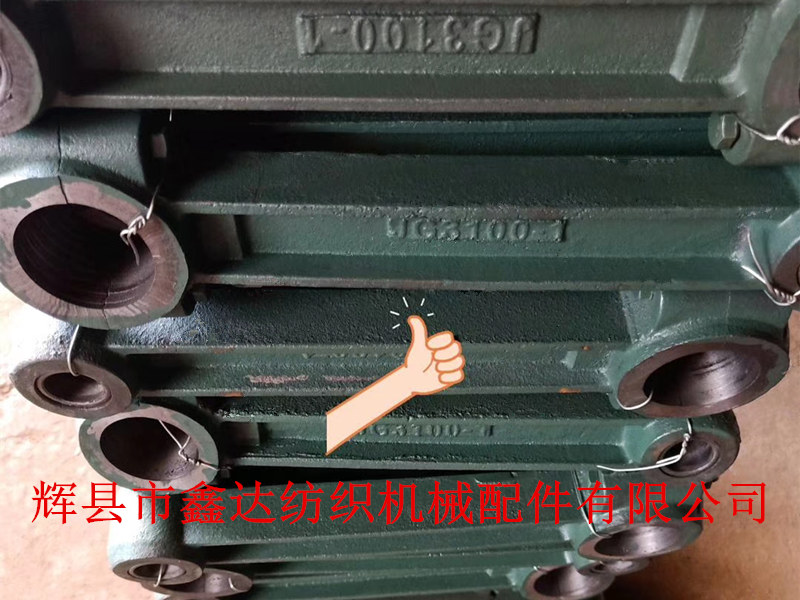

The hand holding accessories of loom belong to the common vulnerable accessories of shuttle loom, 5 sets for each bundle, 2 sets for each loom, connecting 3209 crank shaft and k81t hand holding bolt. Loom handle 3100-1 is as follows:
Xinda Textile accessories, a manufacturer and wholesaler of textile machine accessories - cast iron parts, sanded parts and yuanche processing parts, has been engaged in the sales of textile accessories and textile equipment for 20 years. Our company has a complete variety system of woven machine accessories.

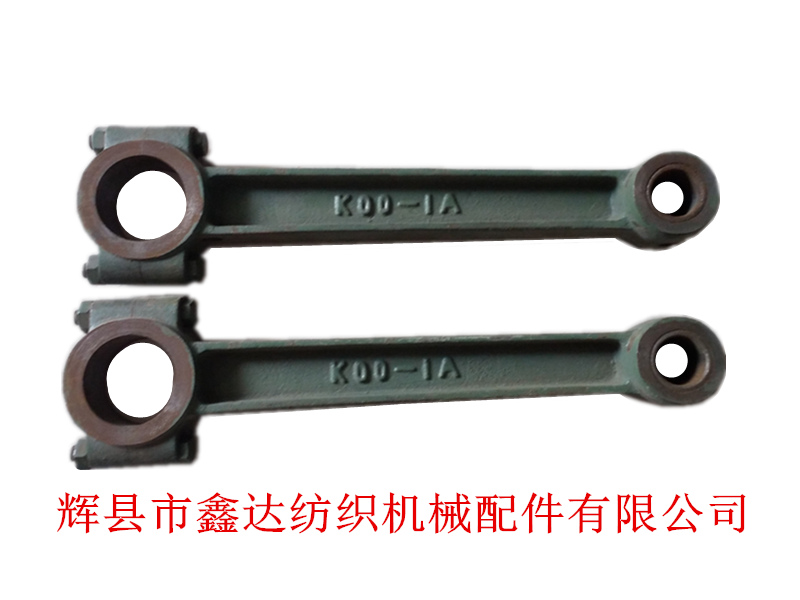

The handle k00-1 used in 1511 single beam loom is slightly shorter than 3200-2d, and the bushing k79 and the handle bolt K81 are common.
Installation requirements of the handlebar assembly: measure the equal length with the fixed gauge, and the tolerance is less than 0.25mm. Flexible in the middle (four hearts live, after death, up and down in the middle is appropriate). Loom hand in hand, 3200-2, loom accessories - Huixian Xinda Textile Machinery Accessories Co., Ltd.
