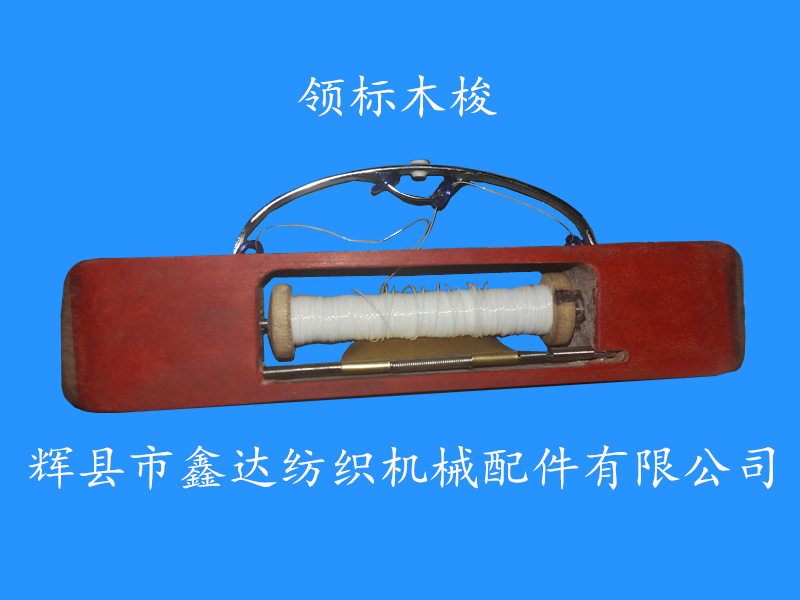

Our company can customize the standard wooden shuttle according to customer requirements_ Webbing shuttle_ Magnetic red steel paper shuttle. In the picture (Collar Webbing Shuttle With Magnetic), the size of the leading wooden shuttle machine shuttle is: 132mm long. The bottom of the shuttle is pasted with red steel paper. Each shuttle has four glass rings, two tension springs, one porcelain eye and two magnets (embedded). The multi-layer shuttle box shuttle of webbing machine is processed with shuttle blank, and the jacquard collar standard shuttle of webbing machine is customized. Please contact our company.

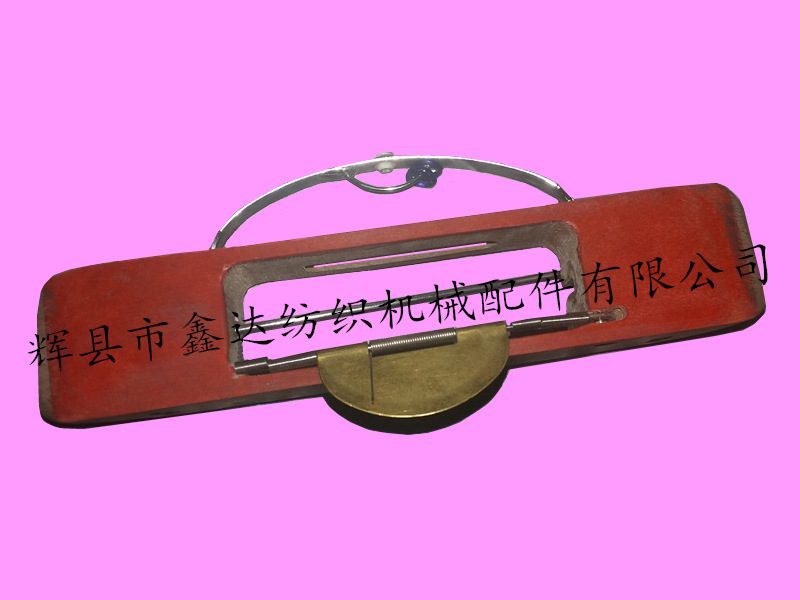

In the figure above, there is a pressing plate on the inner cavity side wall of the wooden shuttle, which is fixed by a torsion spring and a rotating shaft. A magnet is installed under the red steel paper, which can swing the shuttle left and right depending on the magnetic force to realize the weft insertion function.

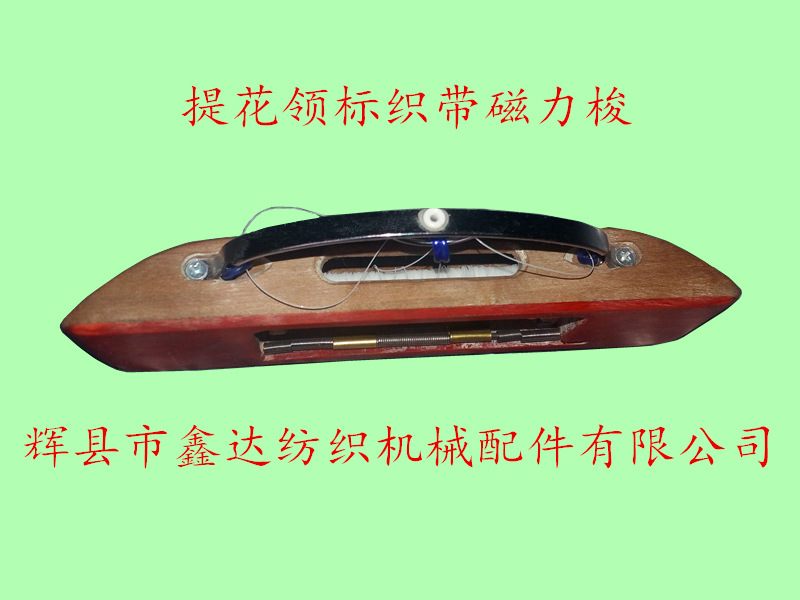

The figure above shows the side of the wooden shuttle of the leading standard webbing machine. The surface of the bow frame is nickel plated. The weft extraction mechanism outside the shuttle is composed of porcelain eye, glass ring, tension tension spring and yarn guide rod.
Customized collar standard wooden shuttle_ Webbing shuttle_ The magnetic red steel paper shuttle needs to provide samples and supporting weft tubes (spools). Our company can give accurate quotations only after dismantling the samples. The process technology is mature. Due to the long processing cycle of the wooden shuttle, it does not support proofing. Generally, it can be delivered within 40 days. We hope all textile users can arrange orders in advance.
