Huixian city Xinda Textile Machinery Accessories Co., Ltd. provides 0200-2 Crank Wheel GA615 loom accessories: 0200-2 crankshaft gear 75-inch /56-inch bending shaft gear of old loom. The external diameter of this loom crankshaft gear is 238mm, the internal hole diameter is 40mm, the number of teeth is 38, and the modulus =6. It is suitable for 56-inch and 75-inch looms of GA615 model, and the number of each loom is one.

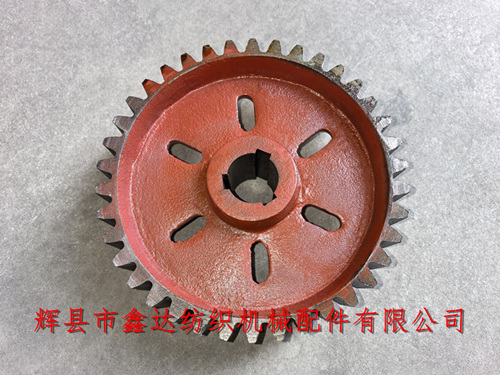

The above picture shows the top view of the 0200-2 bent shaft gear. There are three keyways with a width of 12mm in the inner hole. Under normal circumstances, one keyway is used. If the teeth at the picking point are damaged, the position of the keyway can be changed to reverse the teeth.
The above picture is its front side view; The six holes around the frustum are used to fix the D13 smooth motion cam. The crankshaft gear is divided into left and right, but the smooth cam is divided into left and right hands.
The 0200-2 crankshaft wheel is made of ductile iron (a mixture of gray iron HT15-33 and ductile iron), and its overall dimensions are the same as those of D7 and 3210, except that the number of teeth is increased by two, and the inner hole diameter is the same as that of 3210 (40mm).
If you need to purchase GA615 gear, 0200-2 crankshaft gear, 0200-2 Crank Wheel, 75-inch /56-inch bending shaft gear of old Loom machine, 44-inch 36-tooth bending shaft gear, 38-tooth crankshaft gear, 1511 36-tooth crankshaft gear and other GA615 accessories, please contact Mr. Yang of our company for consultation.
