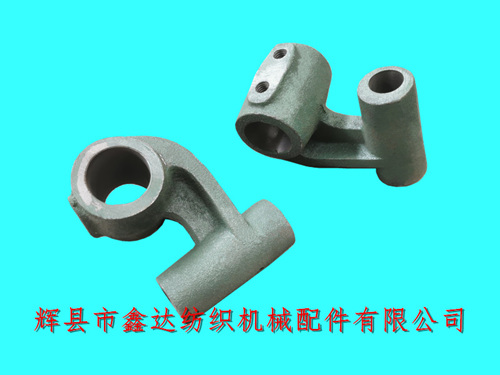

Huixian Xinda Textile Machinery Parts Co., Ltd. provides Multi Loom C-25 Bent Cross Cannon For Stick,1515 multi shuttle accessories C-25 shuttle throwing curved cross cannon feet. The cross cannon feet used in multi arm multi shuttle weaving machines are curved handle shaped (see figure below), with a large hole fixed on the rocking shaft having an inner diameter of 38mm and a length of 76mm. The cylindrical inner diameter of the screw core shaft for fixing the shuttle plate is 22mm, and the two shaft holes are in a cross shape with a center distance of 80mm between them.
The 1515 multi shuttle accessory C-25 shuttle throwing curved cross cannon footstep is fixed to the rocking shaft of the multi arm multi shuttle loom with two M10 support head screws, one on each side (4X4, 1 * 4 for use, installed on the side of the multi shuttle box), and the loom support foot moves back and forth synchronously with the rocking shaft.
The C-25 textile shuttle piece is not divided into left and right hands, and each grid loom uses two pieces, mainly used in the 1515 multi shuttle structure (borrowed from the 1511 model, which is the same as the GA615 model).
The above figure shows the side and back views of the curved handle cross cannon leg C-25; The F18 shuttle rod screw core shaft is installed in the small hole, and there is no torsion spring or adjustment clamp installed on the periphery. The reset of its counterpart - shuttle rod foot cap C-26- relies on the tension spring and belt on the wall panel side, as shown in the following figure:
If you need to purchase GA615 multi shuttle accessories, 1515 accessories, weaving machine steps, 1515 cannon feet, 214M grid machine parts, weaving machine shuttle feet and other products, please contact Mr. Yang from our company for consultation. We sincerely welcome everyone's visit.
For more detailed parameters and dimensions of the 1515 Dobby And multi Loom accessories C-25 shuttle throwing curved cross cannon footstep, please also contact us.
