Huixian Xinda Textile Machinery Parts Co., Ltd. provides textile hardware accessories such as shuttle clamps, iron clamps, shuttle clamps, yarn feeders, and disc loom accessories.Shuttle Clamp/Yarn Feeder/Disc Loom Parts, The shuttle clamp used in automatic shuttle looms (also known as disc looms) is called shuttle clamp or iron clamp. Its main function is to fix the steel ring on the weft tube of the disc loom by clamping force, ensuring that the weft tube is placed horizontally in the shuttle cavity.

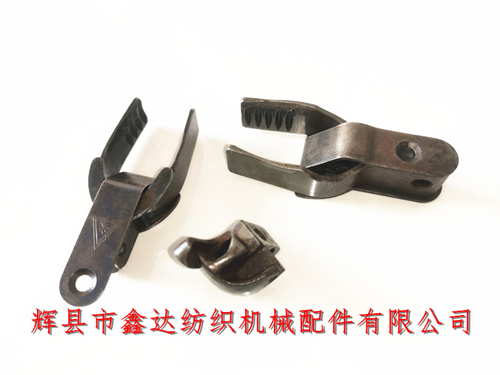

The iron chuck is divided into four slots and five slots. The left side of the picture shows a four slot chuck, and the upper right corner shows a five slot chuck (see the number of grooves on the side of the chuck). The material is mainly spring manganese steel, and there is a nylon shock absorber block (thickness 4.5mm) in between to protect the chuck on both sides from returning to its original position during automatic extrusion replacement of the warp tube, and to provide suitable openings for new weft tubes. The DS202 yarn feeder (made of iron) is located in the lower right corner.
The above picture is their side view. The main body length of the four slot iron chuck (bottom left corner of the above picture) is 70mm, the height is 16mm, and the tail thickness is 9.5mm. The spring plate tail on the upper part of the iron chuck is longer, protruding 18mm from the tail. The diameter of the circular hole on the upper plane is 5.4mm, and the inner diameter of the circular hole on the side is 5.2mm. Its total weight is 69 grams per set; The external length of DS202 is 44mm, width is 26mm, height is 19mm, and its individual weight is 47 grams.Shuttle Clamp/Yarn Feeder/Disc Loom Parts.
The above picture is the back view of the iron chuck. The main body length of the five slot clamp (top right corner of the picture) is 80.5mm, the total width is 31mm, and the height is 18mm (total height is 21mm). The outer width of the front opening of the clamp is 25mm, and the inner width is 20mm; The diameter of the side circular hole is 6.2mm, and the diameter of the upper flat circular hole is 5.5mm. The total weight of this clamp is 76 grams per set. If you need to purchase textile shuttle clamps, iron clamps, shuttles, collets, iron collets, yarn feeders, loom accessories and other products, please contact Mr. Yang from our company for more information.
