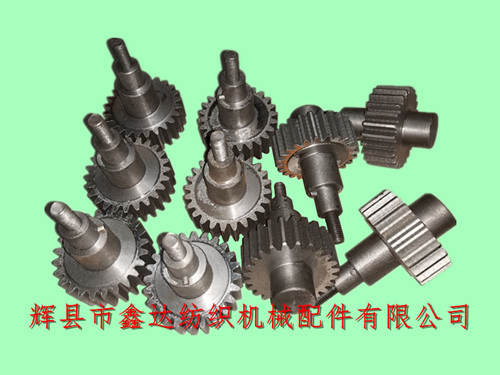

Huixian Xinda Textile Machinery Accessories Co., Ltd. provides shuttle loom accessories, 1511/1515/GA615 Loom Parts Pinion L00-4,including core pinion L00-4 (milling teeth). The number of teeth of the core gear is 24, which is processed by milling teeth. Its total height is 113mm, the outer diameter of the gear is 65.5mm, the tooth thickness is 24.7mm, and the diameters of the round table from bottom to top are 28mm, 28mm, 18mm; The front core screw is M10, and each loom uses one L00-4 core gear, which belongs to the shuttle loom accessory.
The front screw of shuttle loom gear L00-4 is fixed with weft density gear (referred to as weft density wheel for short), and the teeth mesh with the teeth of L10 bridge gear. Another weft density wheel is fixed at the front of the adjacent change gear screw core L00-6. The number of teeth of the two weft density wheels is changed according to the weft yarn density of the fabric.
The core gear L00-4 of the loom belongs to the take-up mechanism, which is commonly used in shuttle looms such as 1511 and 1515. The take-up mechanism is mainly used to gradually lead the fabric interwoven with warp and weft away from the fabric mouth and wound on the take-up roller. The take-up mechanism directly affects the density of the fabric.
The cored gear L00-4 with module 2.5 is embedded with a pin in the front, which is used to clamp the position of the weft density wheel to prevent the cored gear and the weft density wheel from rotating synchronously or slipping. The weight of a single L00-4 core pinion is about 0.7 kg, which belongs to a textile spur gear accessory, and is installed in the L30xL31 carrier for transmission.
Purchase all kinds of shuttle loom gears, textile spur gears, core gears and shuttle loom accessories. 1511/1515/GA615 Loom Parts Pinion L00-4, Please contact Mr. Yang of Xinda Textile Machinery Accessories Co., Ltd. We sincerely welcome customers from all over the world to have a comprehensive understanding of loom gears, loom accessories, core gears and shuttle loom accessories.
