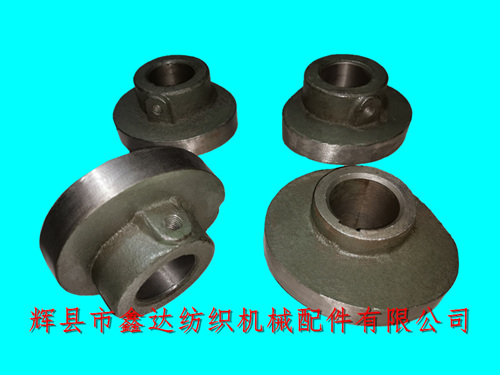

Huixian Xinda Textile Machinery Accessories Co., Ltd. provides warp sending textile accessories SJ70 loom cam 1515/GA615. The SJ-70 cam is installed on the crank shaft (bending shaft 3209) of the loom. The diameter of the inner hole is 40mm, the width of the keyway is 12mm, and the depth is 3mm. The total height of the warp sending cam is 61mm. It belongs to shuttle 1515/GA615 textile accessories. The large diameter of its outer ring is 113mm, the small diameter is 102mm, and the tightening screw hole outside the shaft hole is M10, The thickness of the friction surface of the cam is 20.5mm, the height of the upper step is 27mm, and the height of the lower step is 15mm. The outfeed cam is divided into left hand and right hand, and each loom uses one.
The outer diameter of the upper let off cam of SJ-70 loom is 67mm, and the outer diameter of the lower step is 59mm. Its material is HT15-32 pig iron. The let off device of the loom is installed on the outside of the wallboard. The rapier also borrows the let off device of 1515/GA615 shuttle loom, but because the rapier does not distinguish left hand and right hand, it only uses a single hand.
The polished surface of SJ-70 cam is connected with C16 in front of SJ-52 swing rod. The packaging of the cam is 5 in each string, and the weight of a single cam is 1.55 kg. Our company wholesales all kinds of delivery warp accessories, including shuttle textile accessories,1515 Shuttle Loom Cam, GA615 loom cam, 1515 CAM products. The textile machine accessory SJ70 rotates with the bending shaft of the loom, so as to provide power for the whole set of external let off device.
If there are textile mills, textile mills, cotton mills and canvas factories purchasing SJ70 loom cams and other machine let off accessories, please contact Mr. Yang of our company for consultation. We sincerely welcome the consultation and cooperation of new and old customers in all regions and cities!
