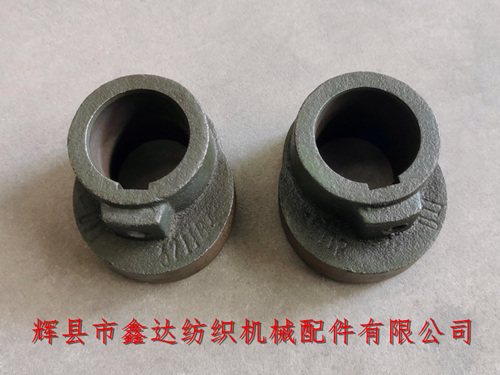

Huixian Xinda Textile Machinery Parts Co., Ltd. provides 3211 crankshaft cam 1515 cast iron Parts bent shaft crooked wheel. The 3211 bent shaft cam has an eccentric shape, so it is also known as the "crooked wheel". The diameter of its inner hole is 40mm, which is connected to the short end of the bent shaft 3209 (crank shaft). The bottom length of its half diameter is 82mm, the total height is 5 centimeters, and the thickness of the friction surface (elliptical contact surface) is 23mm.
The bending cam 3211 of the 1515/GA615 weaving machine is divided into left and right hands. The width of the keyway at the intermediate shaft hole position is 12mm, and the diameter of the outer circular cone is 56mm.
Requirements for large radius wear of 3211 skewed wheel: less than or equal to 1.6 millimeters, surface grooves should be corrected in a timely manner, keyway wear should be less than 0.3 millimeters, M8 head screws should be lower than the large radius of the cam, and cracking of the outer ring journal is not allowed.
The light green one in the above picture is the 1511-D11 bent shaft crooked wheel (with an inner hole diameter of 38mm), and the dark green one is the 1515-3211 crankshaft cam. The two have the same appearance, but the inner hole diameter is different. 3211 crankshaft cam 1515 cast iron bent shaft skew wheel is suitable for GA615 shuttle weaving machine equipment.
Packaging: 10 pieces per string, each string consists of 5 pairs (5 left-handed and 5 right-handed). If you need to purchase textile camshafts, D11 skewed wheels, crankshaft 32091515 bent shafts, GA615 cast iron parts, textile accessories 3211 and other products, please contact our company for consultation.
