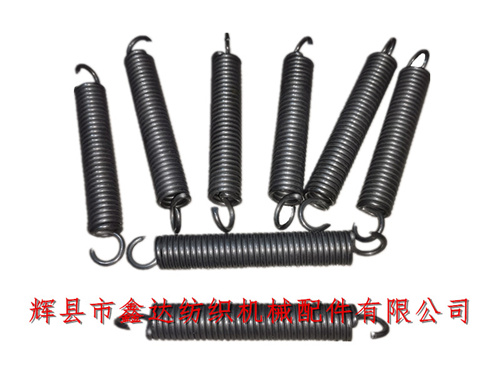

Xinda Textile Machinery Accessories Co., Ltd. provides textile hardware and tools. The color of SJ-25 textile spring buffer tension spring accessories of old loom parts is silver white. It belongs to 1515 SP series external let off device. It is a product of loom spring and textile spring. The external diameter of SJ-25 tension spring is 12.5mm (13mm in the drawing) and the total length is 9.1cm. The diameter of white loom part spring steel wire is 2mm. The total number of turns of external let off tension spring of textile machine is 33. The internal diameter of spring hook is 9mm and the diameter of winding inner ring is 8.5mm.

Two SJ-25 buffer tension springs are used for each loom equipment sending warp outside the machine, and the tight winding length of the spring body is 64mm. The tension springs of the textile machine include K57 reed clamp spring, K56 safety spring, O42 combined rod spring, I37 switch handle spring, I38 small coil spring, C38 brake rod spring, L72 cloth winding wood roller support rod spring, etc.

There are hundreds of loom spring products in the old loom parts. They belong to textile hardware and play an irreplaceable role in the main structure of the loom. They have a wide range of applications in textile machinery and have broad prospects for development and application. Special springs, special-shaped springs, leaf springs, torsion springs and compression springs are also reflected in textile equipment.

The packaging of the buffer tension spring (SJ-25) of the old loom is: 200 per bag, weighing about 4kg. The let off accessories of 1515 machine and GA615 machine can be borrowed from each other. For textile spring products, our company can customize them in batches according to the requirements of customers' samples. All purchasers are welcome to contact Mr. Yang of our company for details!
