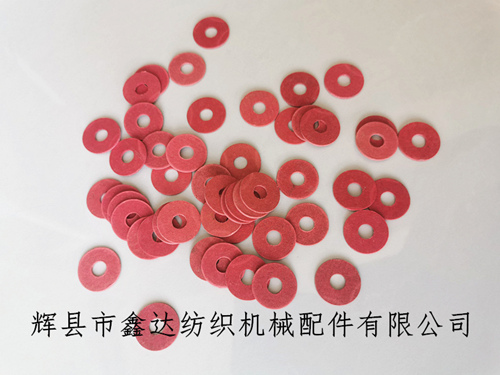

Huixian Xinda Textile Machinery Parts Co., Ltd. has long provided shuttle accessories for weaving machinery, including red steel paper shuttle tip washers and shuttle teeth strips (shuttle teeth). Circular red steel paper washers are installed on the inside of the shuttle tips at both ends of the shuttle, used for shock absorption and buffering of the shuttle body, and for tightening and fixing the shuttle tips. Weaving shuttle accessories - the inner diameter of the circular gasket is 7 millimeters, the outer diameter is 21 millimeters, and the overall thickness is 1.3 millimeters. Each shuttle of the weaving machine uses 2 red steel paper shuttle tip gaskets;
The outer ring in the above picture is a shuttle tooth strip (referred to as shuttle tooth), which is used for weaving mechanical shuttles (flat shuttle and curved shuttle). The specific number of teeth includes 8 teeth, 10 teeth, 13 teeth, 14 teeth, 16 teeth and other specifications (the one in the picture is 10 teeth).
The width of the red steel paper shuttle teeth is 8 millimeters, the total height is 7 millimeters, the thickness between the bottom and back of the teeth is 1.5 millimeters, and the height of the shuttle teeth is 5.5 millimeters. It is mainly used for curved woven wooden shuttles with 10 teeth, and the weight of a single shuttle tooth is about 4 grams.
The individual weight of the red steel paper gasket for textile machinery shuttle accessories is about 0.5 grams. The following pictures show four types of shuttle tips and red steel paper washers:
If you need to order weaving machinery accessories, shuttle accessories, red steel paper washers, textile shuttle teeth, ribbon racks, wooden shuttle teeth and other products, please contact Mr. Yang from our company for consultation.
