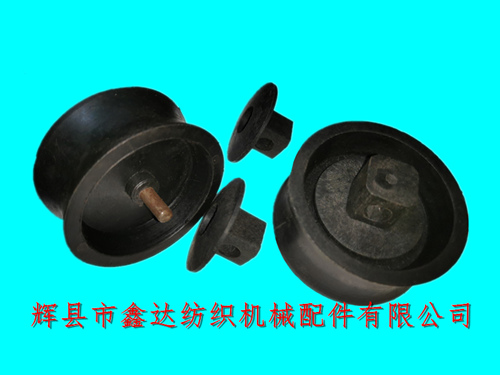

Our company provides spindle belt tension discs (tension discs) for weft reels, Tension Disc For Weft Winder Machine, Tension Disc,Weft Winder Machine,Textile Equipment, accessories of shuttle textile plastic equipment, throughout the year. The tension discs of black plastic weft reels (G203-0300-1, English name: Jockey Pulley) have two lugs, one on the left and one on the right. The outer diameter of the tension discs is 67.5mm, the diameter of the middle groove is 60.5mm, and the width of the arc surface is 28mm; The length of the intermediate mandrel is 45mm and the diameter is 6mm. The number of spindles used in textile plastic accessories - spindle belt tension disc is related to the number of spindles in the weft winding machine.
The side length of the square lug on both sides of the spindle belt tension disc is 17.8mm, one of which is equipped with a refueling hole, and the diameter of the lower disc is 43mm. The total height of the lug of the spindle belt tension disc (tension disc) is 22.3mm. The main body of each spindle belt disc and the lugs on both sides are left and right handed, and can be interchanged on the same machine table.
The spindle belt disc of the weft coiler is installed in the slot of the support, and the upper part is pressed by A3 galvanized iron cover plate. The spindle belt tension disc is mainly used to assist the spindle belt to tighten and drive the spindle of the weft coiler to rotate at high speed, playing the role of a guide wheel. Its concentricity is the key to uniform weft winding (excluding the error of needle bearing in spindle seat). The spindle belt tension disc for textile plastic equipment accessories weft winding machine is suitable for G193 weft winding machine and G203 weft beating machine.
Textile black plastic is a general term. The black spindle belt tension disc is made of bakelite. Its material characteristics are low density, good hardness, good wear resistance, brittle shortcomings, easy to be damaged after falling or extrusion impact. They are made of one-piece injection molding, with good overall stability. Bakelite tension disc is a high-speed weft coiler accessory, which belongs to textile plastic parts and textile auxiliary machinery.
The above figure shows the support G293-0324 for fixing the tension disc (tension disc), which is installed on both sides below the weft winder. If you need to buy Textile tension discs, plastic tension discs, weft winding machine accessories, textile plastics, textile equipment and other products, please contact Mr. Yang of Xinda Textile machinery accessories for details! We always adhere to the business philosophy of "integrity management, pursuit of specificity, pragmatism and enterprising", and wholeheartedly provide products and services to Chinese and foreign customers.
