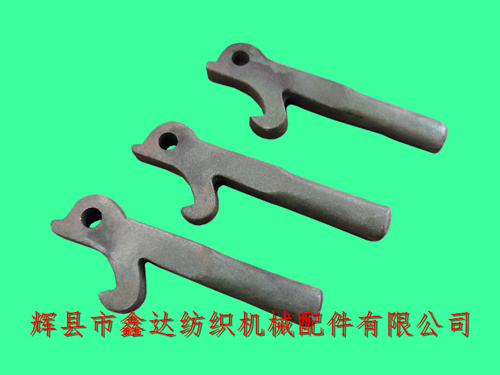

Huixian Xinda Textile Machinery Parts Co., Ltd. provides 1515W-5101 Loom Cloth Roller Support Foot Hook. GA615 weaving machine accessories -1515W type 5101 support foot hooks have a total length of 140 millimeters, with an inner diameter of 10mm for the middle circular hole and a center to tail distance of 125mm. They are connected to the L42 support rod hook with a bolt, and the reasonable gap between the two is ≤ 0.6mm during use. 1515W-5101 is used on the GA615 loom, while the 1515 loom uses 1511-L12 (borrowed from each other).
The material of the 1515W-5101 support rod hook is HT15-32 (gray pig iron), with a front length of 50mm, a width of 43mm at the hook position, a main body thickness of 11mm, and a rear rod length of 90mm.
The hook for the cloth roller support foot used in the 1515 loom is L12, and each loom uses 2 hooks. They are all hooked onto the L14 roller support foot (shuttle side)/L15 cloth roller support rod foot (switch side).
The packaging for 5101 coiling accessories is 20 pieces per string. If you need to purchase weaving machine accessories, GA615 coiling roller hooks, 1515 weaving machine support feet, GA615 accessories, 1515 accessories and other products, please contact Mr. Yang from our company for consultation. We adhere to the business philosophy of "pragmatic progress, common development" and are dedicated to providing sales services for GA615 and 1515 accessories to our customers.
