Our company provides 1515 copper spindles for shuttle looms,Textile Temple Needle Ring For Shuttle Loom, three rows of 0.6 mm copper spindles. The main textile copper accessories are sleeves, gears, rings, etc The hardware of cloth machine is used to hook the cloth surface for open width rolling and flat drawing.

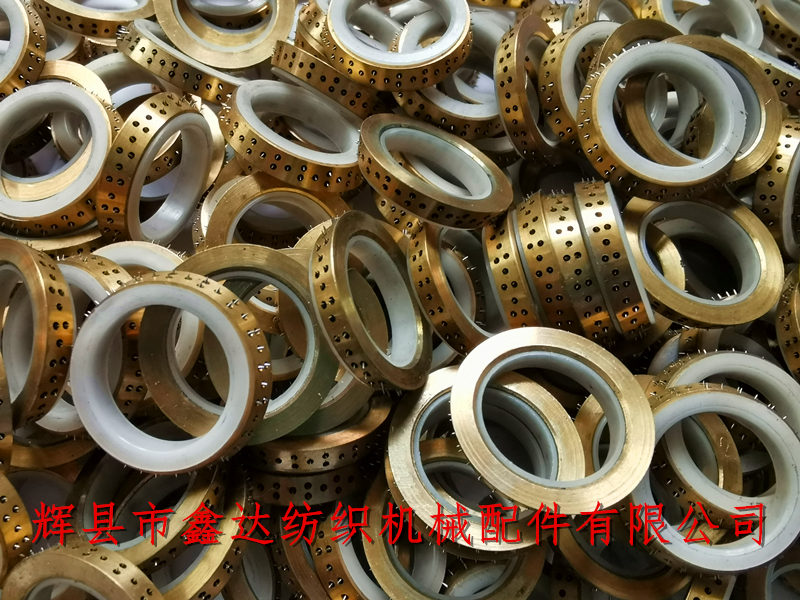

The Textile Temple Needle Ring in the figure above is made of embedded nylon bush and the outer ring is made of copper. The nylon inner sleeve has good wear resistance and ductility, and can save raw materials and reduce weaving cost.
Compared with the wood thorn shaft, the copper thorn shaft can improve its stability, increase the strength of the cloth surface when it is stretched, and has a long service life. The specification of the copper thorn ring piece is identified according to the height of the needle, and the fabric with different thickness needs to use the corresponding thorn ring piece.

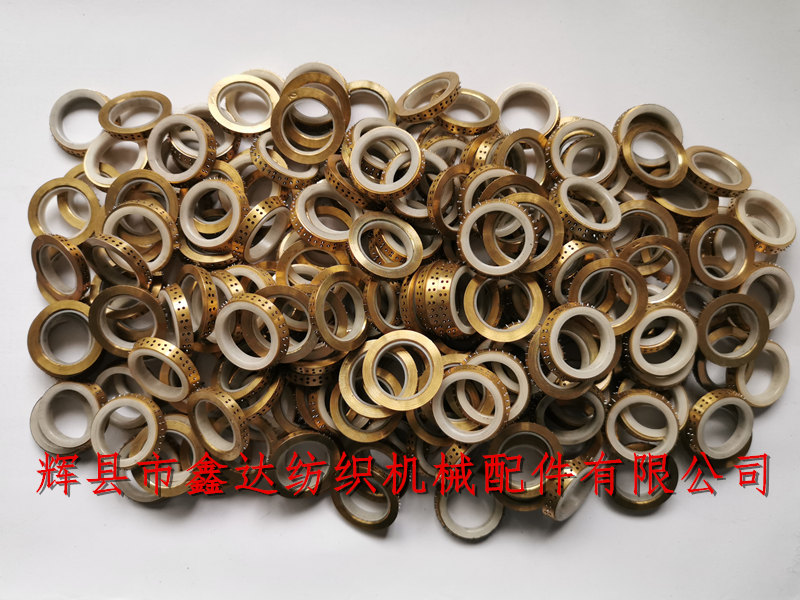

The above picture shows three rows of bayonets. The needles are arranged in three circles. The diameter of the inner ring is 16mm, the thickness is 4mm, and the bottom width of the outer ring is 23.5mm. The parameters used in the old shuttle loom are the same as those used in the rapier loom.
When purchasing loom copper spindles,temple needle ring,textile temple ring,shuttle loom ring, textile spindles, 1515 copper spindles accessories, you can contact our company for details. We will supply in time according to the purchasing list and specifications provided.
