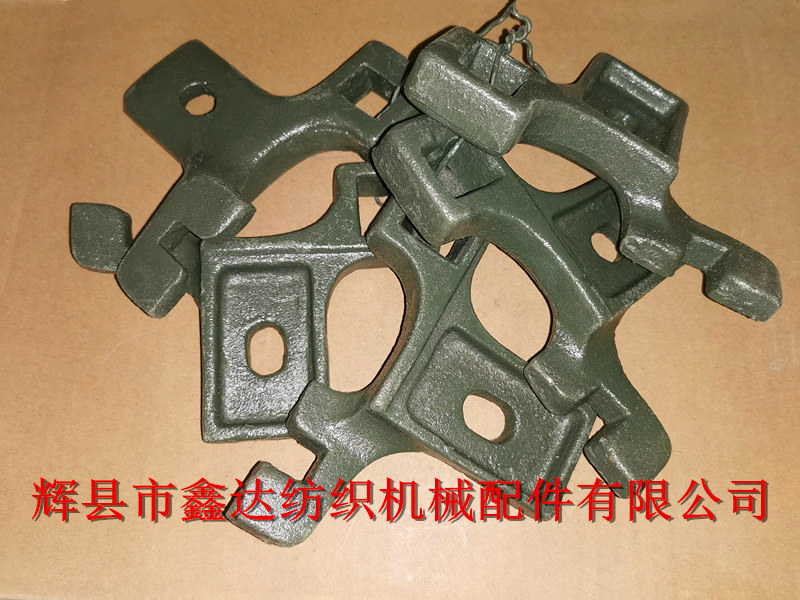

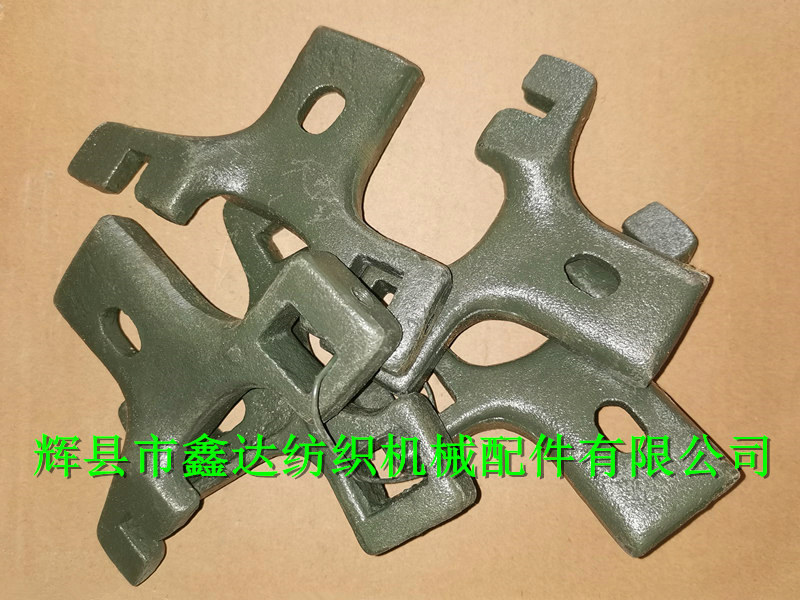

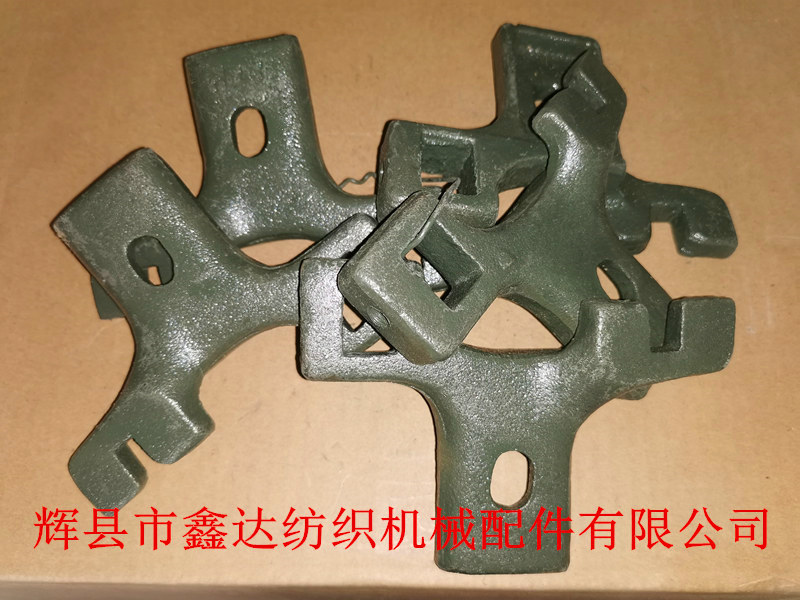

The loom is divided into loom, loom and belt loom. The guide feet of L1 accessories of loom are applied to the shuttle looms of 1511, GA615, G611 and other models. The length and width of L1 guide feet are 13cm and 97mm, which are connected with the stop block of loom o14. The gap between the two is required to be less than 1.6mm for installation and use. If L1 notch of loom is rounded, the new accessories shall be replaced in time.
One side of the textile accessory L1 has a hole, the length of which is 38mm, which is connected with L2 coiling iron finger; the length of the other side (notch) is 50mm, which is connected with the weaving machine o14 to realize the function of breaking and self stopping. Textile machinery part L1 belongs to general accessories, which is widely used in cotton loom.
The guide groove foot material of loom L1 is HT15-33, which is connected with the reed foot of loom 3244 or K1. The product is divided into left hand and right hand. Pay attention to distinguish carefully when installing the looms with different hands. The single weight of the product is about 0.5kg.
Weaving machine L1, guide leg, loom accessories - Henan Xinda Textile accessories, our company also provides all kinds of domestic take-up accessories, let off accessories, change shuttle accessories, treadle accessories, etc., the product range is complete, high quality and low price! Welcome to contact and consult with textile enterprises.
