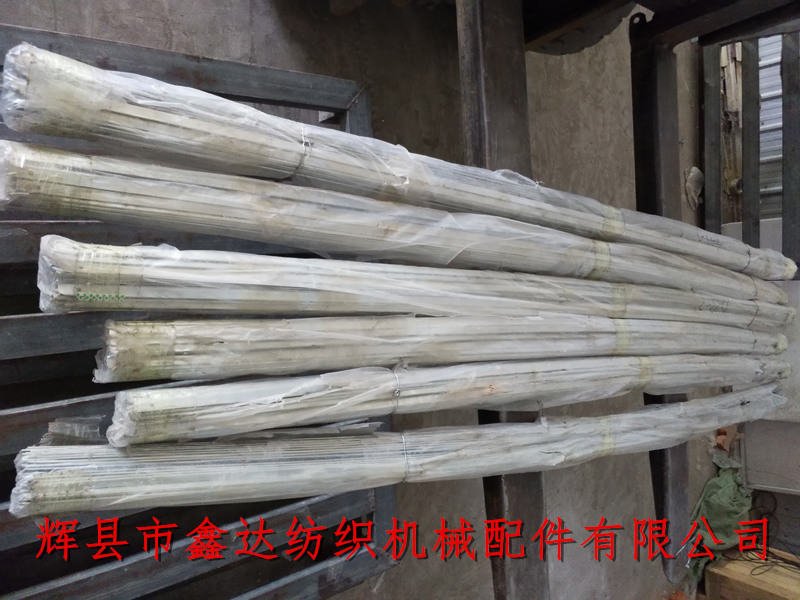

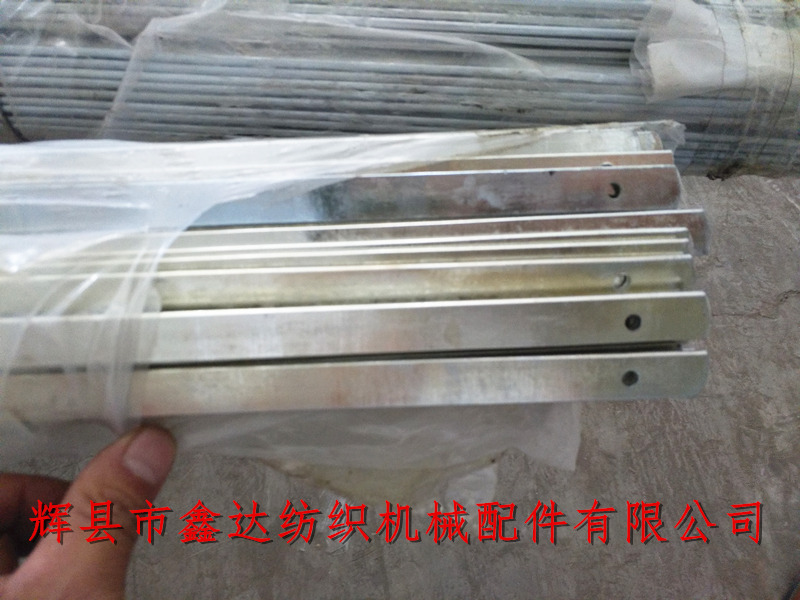

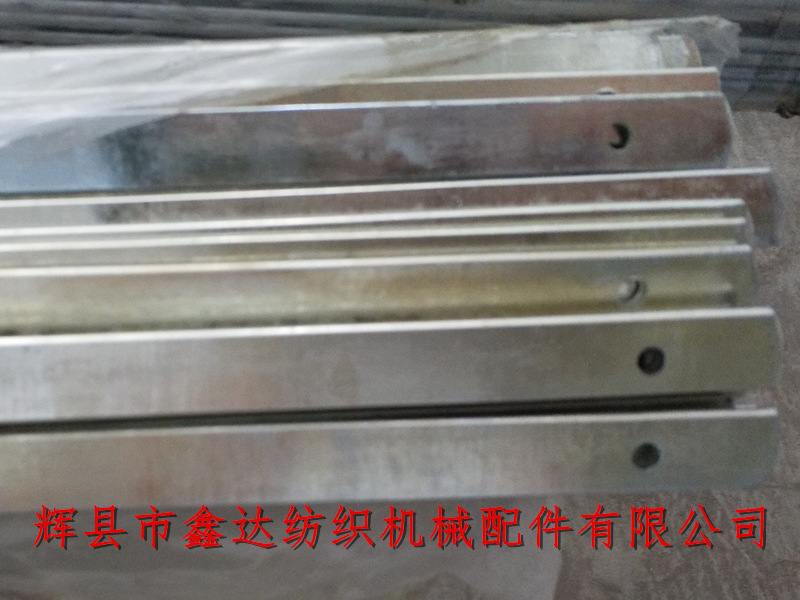

Our company (Xinda Textile accessories) has long supplied various kinds of stop bar for shuttle loom, warp stop bar, old-fashioned straight bar and loom stop bar accessories. The shape is flat iron. The width and thickness of the bar of the stop bar are 15 mm and 2.5-3 mm respectively. The material of the stop bar of shuttle loom is A3 cold drawing, which can also be used in knitting machine. The iron bar of the loom and heald wire straight bar have similar shape and length The 75 inch stop bar (3604) is 1.95 meters long, depending on the width of the loom.
The two ends of the loom stop bar are arc-shaped edges, and the function of the stop bar is to fix the arrangement of stop pieces with a length of 120mm. It belongs to the stop part. The surface of the product is galvanized (white and color). Please take the actual received color as the standard.
The lengths of 44 stop bar (o33), 56 inch stop bar, 63 inch bar and 75 inch bar are 1167 mm, 1474 mm, 1649 mm and 1954 mm respectively. They are connected with the support leg O1 or O2 of the loom. Generally, 4 pieces are used for each loom, and 2 pieces are used for weaving fabrics with less total number of warp yarns.
If textile enterprises need to purchase 1511 stop bar, 1515 stop bar, GA615 stop bar iron bar, ga611 loom stop bar and other accessories, please contact Mr. Yang of our company for details. We are an order based business model. We support mass customization of various types and specifications of textile stop bar and heald bar accessories. The minimum order quantity of common specifications is more than 1000 pieces.
