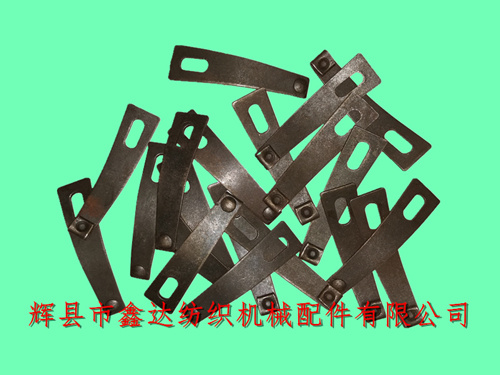

Huixian Xinda Textile Accessories provides C-20 wrapped head spring multi shuttle loom Parts, old loom leaf spring, 1x4, 4X4 multi shuttle box accessories, 214M-C shuttle box spring C-20 length is 118mm, tail width is 32mm, thickness is 3mm. The chute of C-20 bobbin head spring is installed on the C-41 bobbin head. The front concave position is used to fix the stator element of C-35 bobbin box. Two bobbin head springs are used for 1X4 multi bobbin box and four for 4X4 multi bobbin box.
214MC multi shuttle box is mainly used for layering of different shuttles, and controlling each shuttle to be put out orderly according to actual needs. 1511 and 1515 multi shuttle looms can use this compression spring. Package: 20 pieces per string, process: high temperature quenching.
Multi shuttle box parts belong to the old loom accessories, which operate mechanically. Relatively speaking, there are many vulnerable parts, such as B9-3 leather knot, 2408 multi shuttle hook knot, C-06 shuttle box steel leaf spring, C-08 shuttle box bottom steel plate, C-25 cross step, etc.
The beater foot C-26 of the multi shuttle loom has a tail, which is similar to the F14/F15 of the ordinary flat loom. One end of the C-35 stator is fixed on the C-42 stator step. Looms equipped with multi shuttle devices are referred to as multi shuttle looms, also known as lattice looms. Their application scenarios are used for the production of multi color weft fabrics.
C-20 multi shuttle box Baotou spring belongs to textile hardware accessories and is a stamping part. If you need to purchase C-20 Baotou spring, multi shuttle machine accessories, old cloth machine leaf spring, multi shuttle loom accessories and other products, please contact Mr. Yang of Xinda Textile Accessories.
