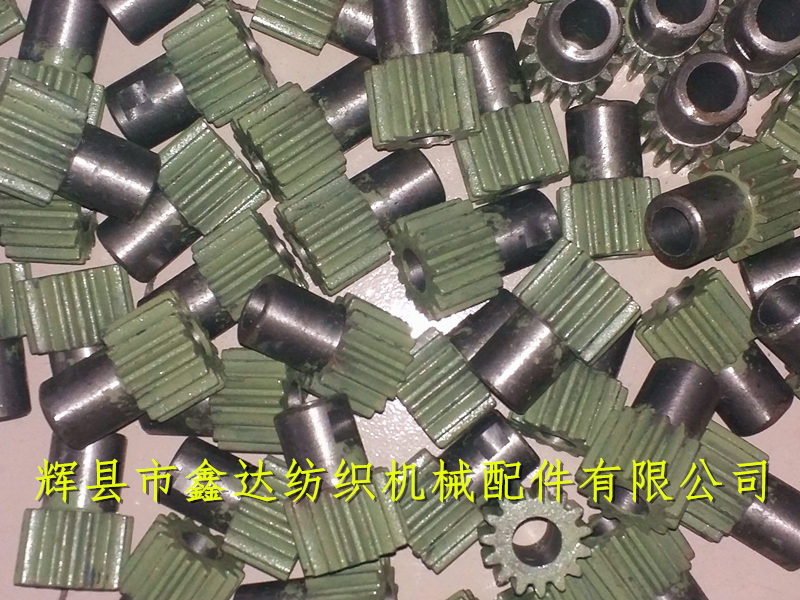

L11b is used in 1511, 1515, G611, GA615 and other models of old-fashioned weaving machine. The number of teeth of the weaving machine accessories - the bridge gear is 15, the diametral pitch is 10, the inner hole is 20 mm, the outer diameter of the round table is 30 mm, the thickness of the tooth top of the weaving machine gear is not more than 1 / 3, and the clearance with the bridge gear screw core l00-5 is less than 0.6 mm.

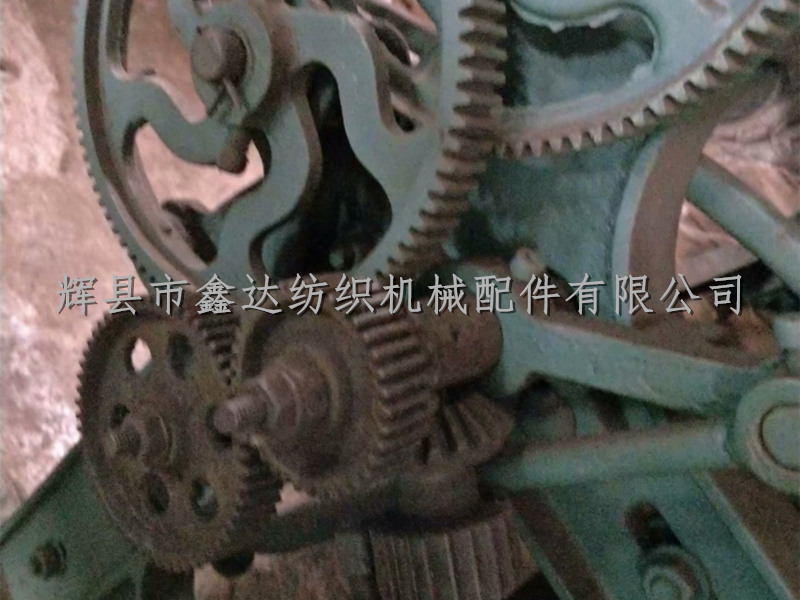

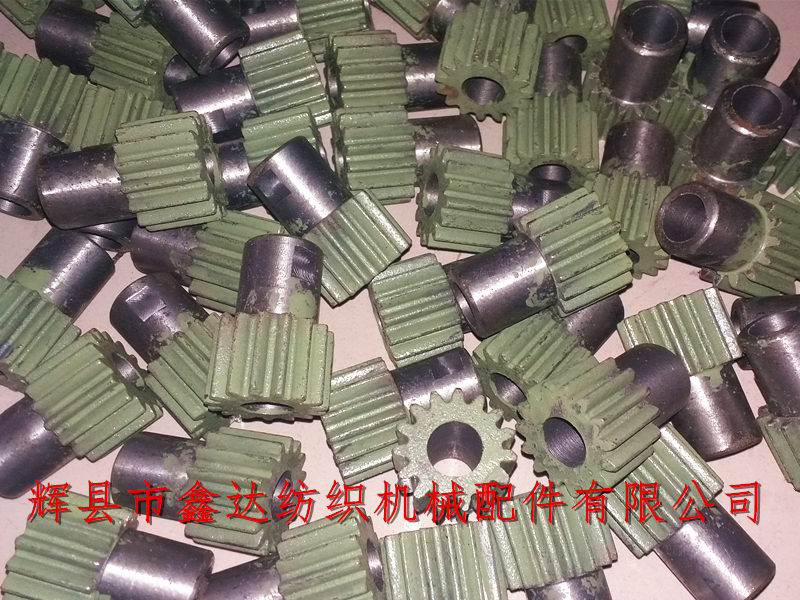

The bridge gear L11 of the loom is used for the take-up device of the loom to control the change of weft density and to process the textile casting. The inner hole of the British system L11 is 19mm, which is 1mm smaller than the metric system L11. For the difference between the metric system and the British system accessories, it is simply explained that the inner hole and the outer diameter of the metric system accessories are generally even, such as 12mm, 14mm, 16mm, 18mm, etc., while the British system accessories are mainly 12mm, 14mm, 16mm, 18mm, etc Generally, the size is odd; for example, 13mm, 14mm, 41.5mm (in some cases, half a millimeter less).
The material of loom accessory L11 is HT15-33, and the surface platform is used for fixing the jacking wire at the inner hole of L10 bridge gear to ensure synchronous rotation with L10 and realize power transmission.
Bridge gear, weaving machine accessories, weaving machine gear - Huixian Xinda Textile Machinery Accessories Co., Ltd. products, 20 in each string, 100 in each bag, we are specialized in providing textile machine straight gear processing, gear sanding rough customized, shuttle machine transmission gear design.
