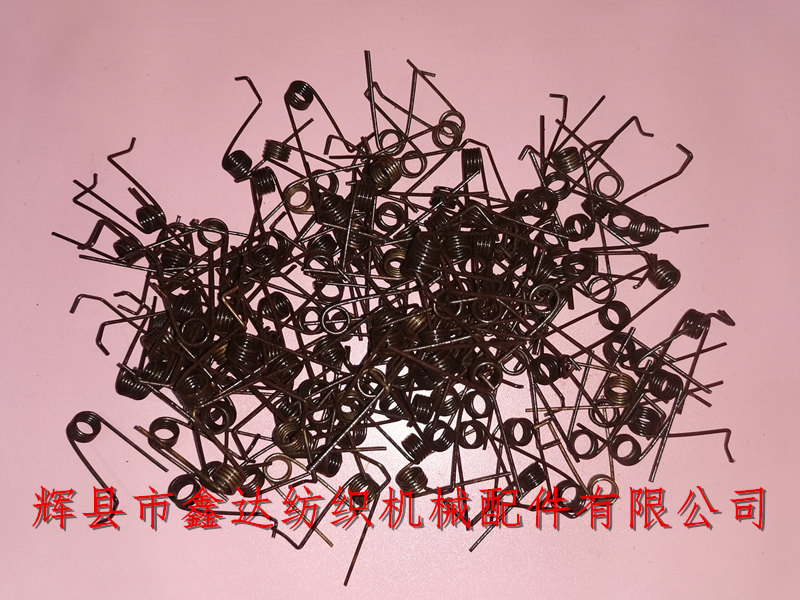

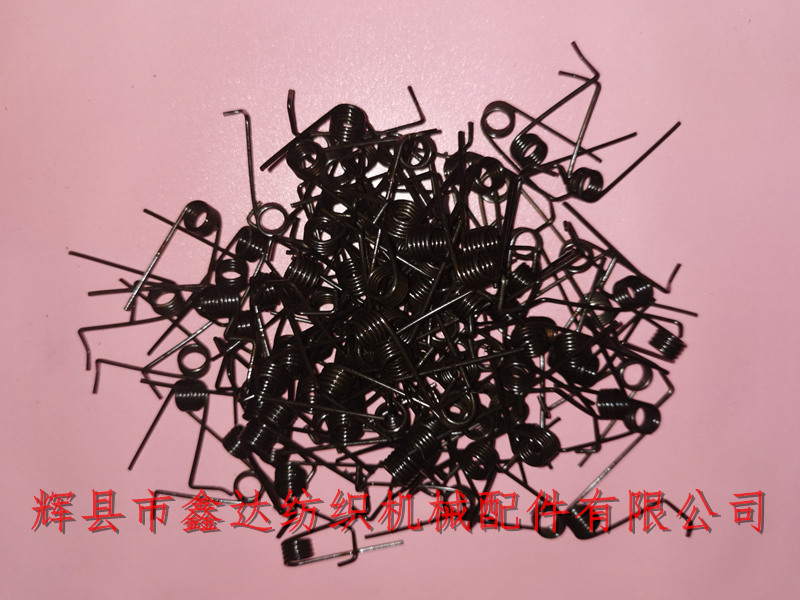

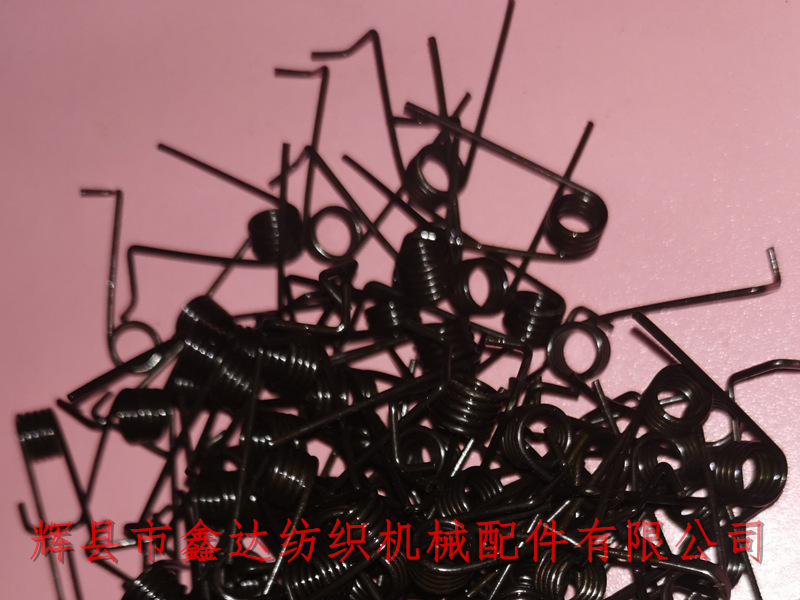

Huixian Xinda Textile Machinery Accessories Co., Ltd. has long provided textile machine waste edge scissors torsion spring 7437 / 7438 (left-hand torsion spring, right-hand torsion spring), English Name: torsion spring. Zhengzhou Textile Machinery Co., Ltd. produces rapier machine waste edge scissors spare parts, with a height of 34mm, one for each rapier loom. Textile torsion spring, loom side shear spring is made of 1 mm spring steel wire, inner ring diameter is 6.5 mm, number of turns is 5, thickness is 6 mm.

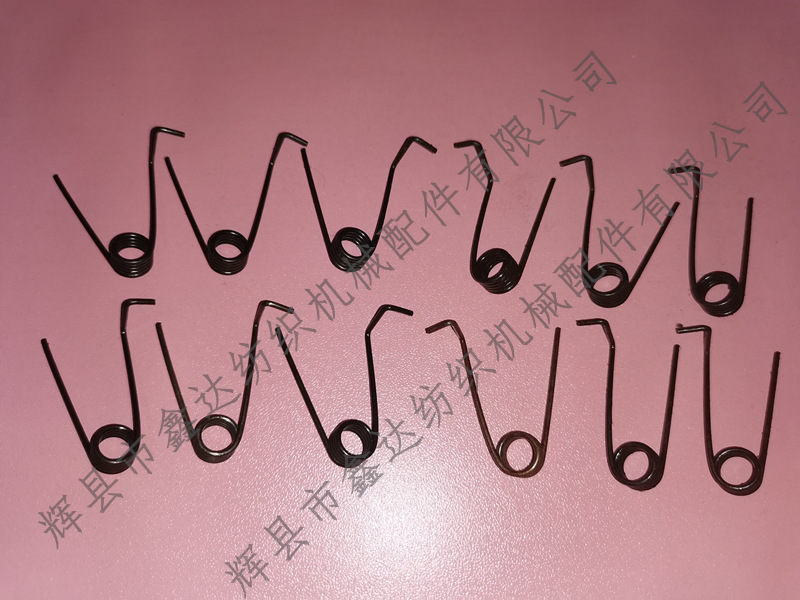

The six on the left in the figure above are the left torsion springs, whereas the six on the right in the figure above are the right torsion springs. The length of the right angle bending handle is 31mm.
The torsion spring of textile waste edge scissors is packaged in self sealing bag or transparent bag, 500 pieces in each package. The spring is used for textile machinery, and the torsion spring of loom is generally used for the completion of reset action.
The waste edge scissors are installed at both ends of the cloth surface of the rapier loom, located at the bottom. Relying on the movement of the reed foot to drive the scissors to cut the waste edge of the cloth surface orderly, which can ensure that both sides of the cloth surface are neat and beautiful.
If textile enterprises need to purchase all kinds of textile torsion spring, elastic spring, left-hand spring, right-hand compression spring and other products, please contact our company for consulting business. Special specification spring products support batch processing and customization. If you need to know the detailed parameters of waste edge torsion spring, textile torsion spring and scissors spring, please contact Mr. Yang of our company for consultation.
